Front door latch actuator, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front door trim. See FRONT DOOR TRIM, REMOVING AND INSTALLING .
- Partially remove vapor barrier. See VAPOR BARRIER, REPLACING UP TO 12.93 or VAPOR BARRIER, REPLACING 01.94 AND UP .

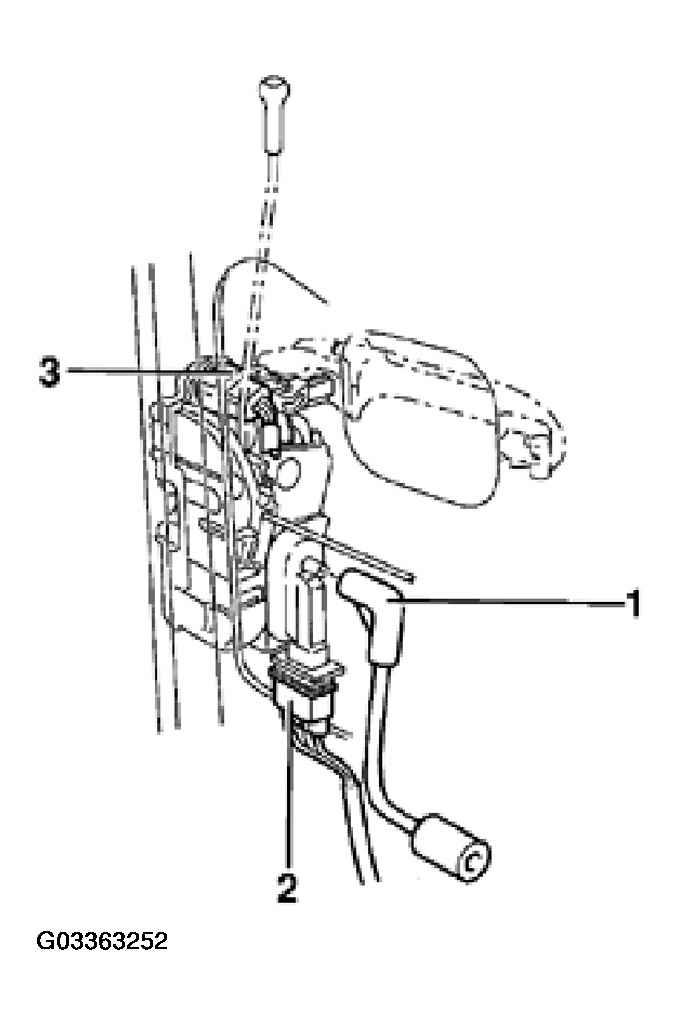

- Disconnect bi-pressure hose -1- from actuator.
- Disconnect connector -2- from actuator and disconnect harness connector -3- from driver's or passenger door central locking switch.
- Remove door latch/lock with actuator. See DOOR LATCH AND OPERATING MECHANISM, REMOVING AND INSTALLING
.NOTE: On four-door vehicles the window regulator should be temporarily loosened for better installation
- Turn lock rotor to "closed" position.

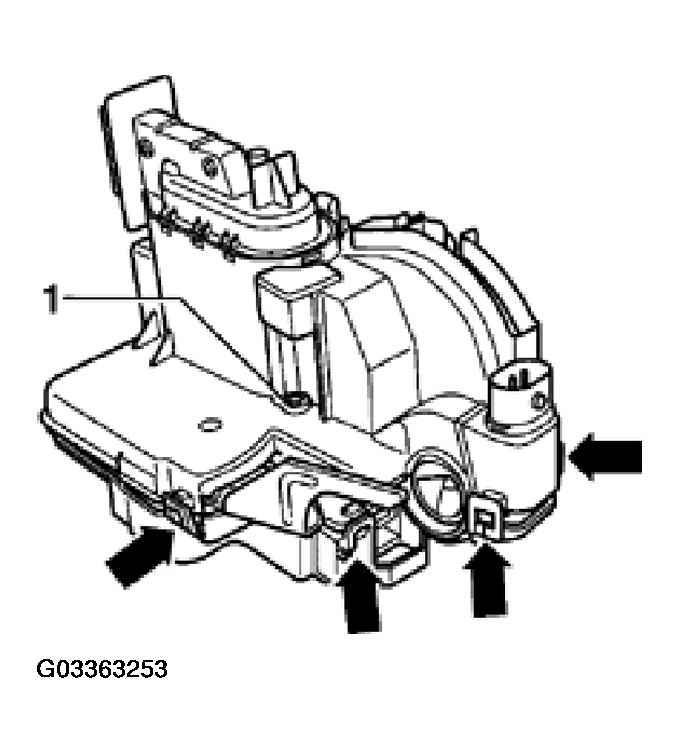

- Remove Torx(R) (T15) screw -1-.
- Open retainers (arrows) and separate actuator from door latch/lock.

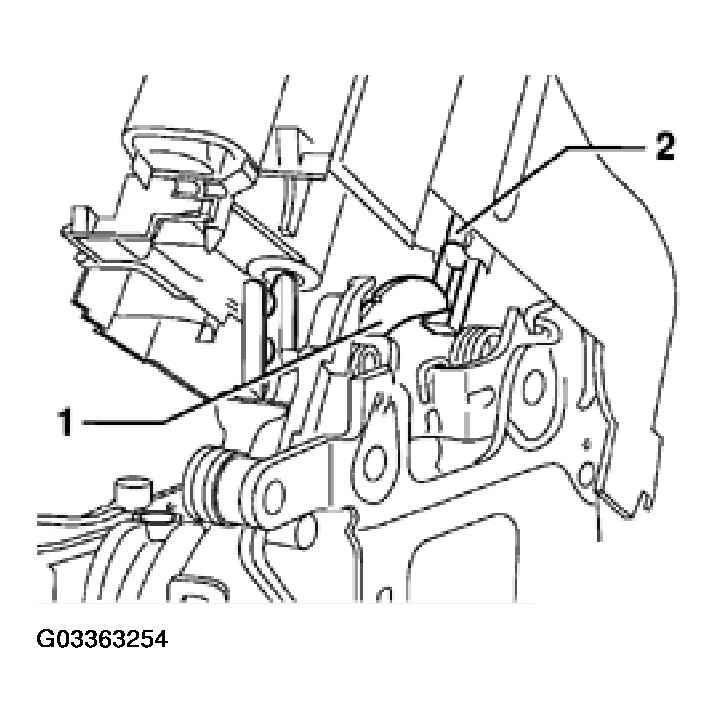

When the actuator is removed, locking lever -1- slides out of the slot in striker -2-.
Fig 1: Disconnecting Harness Connector From Driver's Or Passenger Door Central Locking Switch (Front Door)
