Transmission housing, servicing: Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

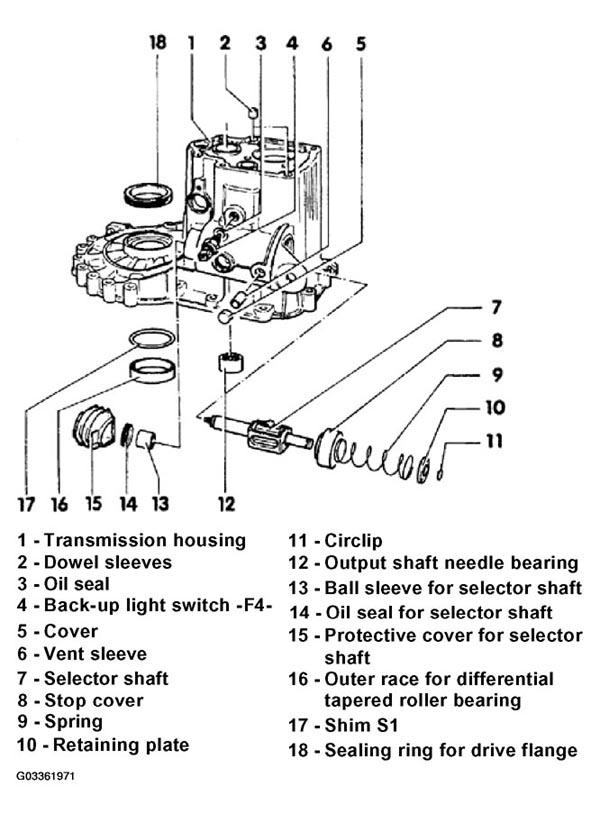

The following list pertains to Fig 1.
- Transmission housing
- When replacing: adjust differential, see DIFFERENTIAL, ADJUSTING
- Dowel sleeves
- Qty: 2
- Oil seal
- Always replace
- Back-up light switch -F4-
- 20 N.m (15 ft lb)
- Cover
- Vent sleeve
- Remove using pliers
- Drive in against shoulder
- Selector shaft
- Removing, see ASSEMBLING
- Installing, see TRANSMISSION HOUSING, SERVICING
- Stop cover
- With ball sleeve, up to 4/93 production
- Ball sleeve discontinued in production after 4/93
- New cover without ball sleeve can be installed in all transmissions
- Spring
- Retaining plate
- Hold retaining plate in position when removing circlip -11-
- Carefully release pressure on spring -9-
- Circlip
- Always replace
- Output shaft needle bearing
- Removing, see Removing output shaft needle bearing
- Installing, see Installing output shaft needle bearing
- Ball sleeve for selector shaft
- Removing, see Extracting selector shaft ball sleeve
- Installing, see Installing selector shaft ball sleeve
- Oil seal for selector shaft
- Can be removed and installed with transmission in place
- Fill area between sealing lips with multi-purpose grease
- Removing, see Removing selector shaft seal -A-
- Installing, see Installing selector shaft seal
- Protective cover for selector shaft
- Outer race for differential tapered roller bearing
- Removing and installing, see DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING
- When replacing: adjust differential, see DIFFERENTIAL, ADJUSTING
- Shim S1
- Adjustment summary, see ADJUSTMENT SUMMARY
- Sealing ring for drive flange
- Replacing, see DRIVE FLANGE OIL SEALS, REMOVING AND INSTALLING
