Clutch cable tensioned

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Route clutch cable end piece through bracket on transmission and through release shaft lever.

CAUTION: Be careful to not damage the plastic sleeve on the clutch cable.

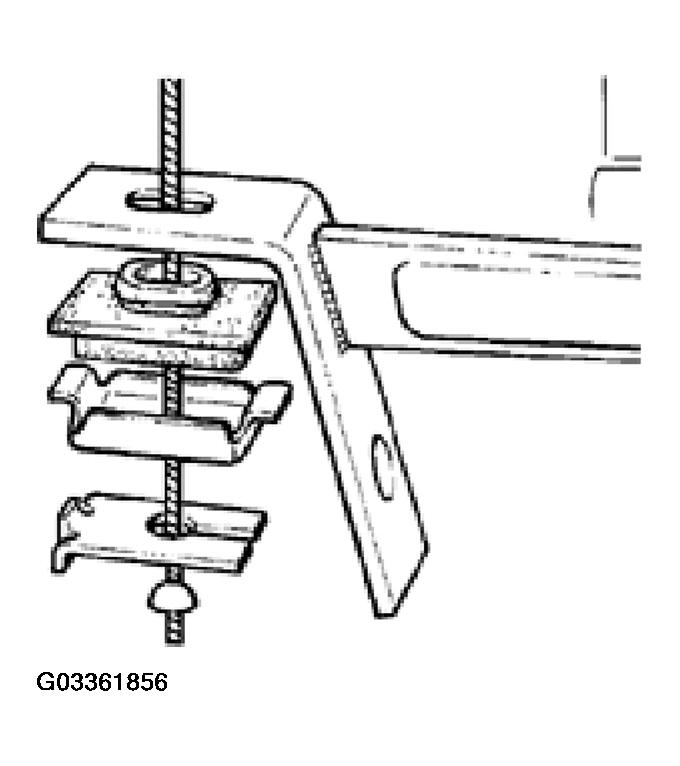

Connect attachment parts to release shaft lever and clutch cable (shown here on vehicle without balance weight).

Fig 1: Shaft Lever And Clutch Cable Attachment Parts
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Hook clutch cable into wire retainers.
Remove retaining strap in such a way that it can be used again.
Install over-center spring, see INSTALLING .
Depress clutch pedal down to stop at least 5 times.
Check operation of clutch cable adjusting mechanism, see CLUTCH CABLE ADJUSTING MECHANISM, CHECKING FUNCTION AND REPAIRING .
