Engine codes AEG, AVH, AZG with aluminum plate cylinder head gasket
WARNING: This page is about a different variant/trim than selected.

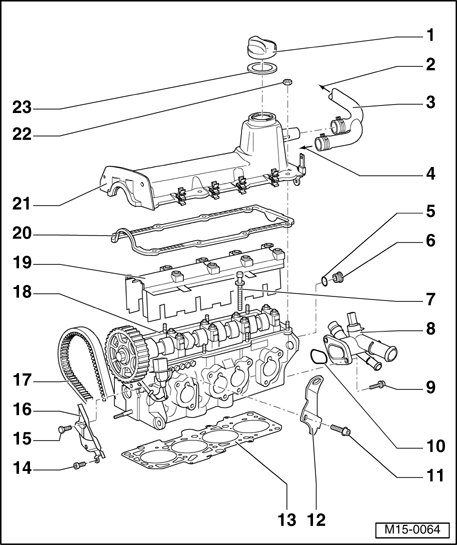

Fig 1: Exploded View Of Cylinder Head Components - Engine Codes AEG, AVH, AZG With Aluminum Plate Cylinder Head Gasket
- Engine codes AEG, AVH, AZG with steel plate cylinder head gasket. Refer to Engine codes AEG, AVH, AZG
1 - Plug
2 - To intake manifold
3 - Shaped hose
4 - To intake manifold
- Only from model year 2002
5 - O-ring
- Always replace
6 - Sealing plug
7 - Cylinder head bolt
- Always replace
- Removal and install "Ploydrive" cylinder head bolt with 3452
- Sequence when loosening and tightening. Refer to Cylinder head, removing and installing , Cylinder head, removing and installing
8 - Union
- Coolant hose schematic diagram. Refer to Coolant hose connection diagram
9 - 10 Nm
10 - O-ring
- Always replace
11 - 20 Nm
12 - Lifting eye
13 - Cylinder head gasket
- Always replace
- After replacement replace complete amount of coolant in system
14 - 15 Nm
15 - 20 Nm
16 - Rear toothed belt guard
17 - Tooth belt
- Mark direction of rotation before removing
- Check for wear
- Do not kink
- Removing, installing and tensioning. Refer to Figure
18 - Cylinder head
- Check for distortion. See Figure .
- Reworking sealing surface. See Figure .
- Removing and installing. Refer to Cylinder head, removing and installing
- After replacement replace complete amount of coolant in system
19 - Oil deflector
20 - Cylinder head cover gasket
- Replace if damaged
- Before installing gasket, coat transition between bearing cap and cylinder head with D 454 300 A2.
21 - Cylinder head cover
22 - 10 Nm
23 - Seal
