Engine codes AEG, AVH, AZG

Engine codes AEG, AVH, AZG with steel plate cylinder head gasket

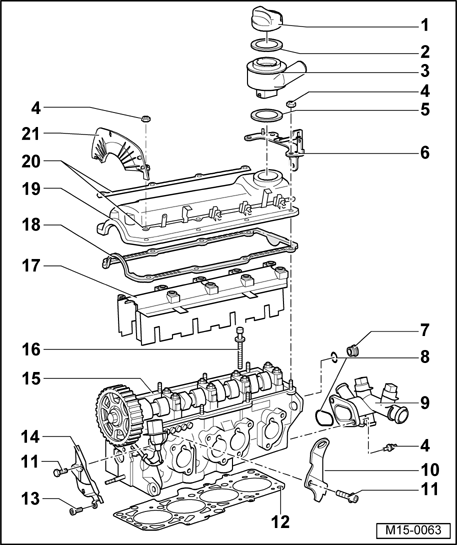

1 - Plug

2 - Seal

3 - Breather housing

• Turn to right to remove

4 - 10 Nm

5 - Seal

• Replace if damaged

6 - Bracket

7 - Sealing plug, 15 Nm

• Always replace

8 - O-ring

• Always replace

9 - Union

• Coolant hose schematic diagram. Refer to Coolant hose connection diagram

10 - Lifting eye

11 - 20 Nm

12 - Cylinder head gasket

• Always replace
• After replacement replace complete amount of coolant in system

13 - 15 Nm

14 - Rear toothed belt guard

15 - Cylinder head

• Check for distortion. See Figure .
• Reworking sealing surface. See Figure .
• Removing and installing. Refer to Cylinder head, removing and installing
• After replacement replace complete amount of coolant in system

16 - Cylinder head bolt

• Always replace
• Removing and installing "Polydrive" cylinder head bolt with 3452
• Sequence when loosening and tightening. Refer to Cylinder head, removing and installing  , Removing and installing cylinder head

17 - Oil deflector

• Replace if damaged
• Before installing gasket, coat transition between bearing cap and cylinder head with D 454 300 A2.

18 - Cylinder head cover gasket

19 - Cylinder head cover

20 - Reinforcing strip

21 - Rear upper toothed belt guard
