Instrument cluster, removing and installing

CAUTION: Before working on the electrical system:

NOTE:

After reconnecting battery:
- Activate vehicle equipment such as radio, clock and power windows as per Repair Manual and/or Owner's Manual.
- On vehicles equipped with OBD II, activate readiness code
  Refer to READ MEASURING VALUE BLOCK (FUNCTION 08)
When removing the instrument cluster, it is not necessary to remove the steering wheel. On the pages that follow, the steering wheel has been deleted from some illustrations in order to more clearly illustrate the procedure.
Instrument cluster modifications. Refer to Instrument cluster running change in production, from 01.96 and on .

Carefully pry off left -side trim panel (left arrow), press release button on side of light switch and remove light switch -E1-. Refer to LIGHT SWITCH, REMOVING AND INSTALLING .

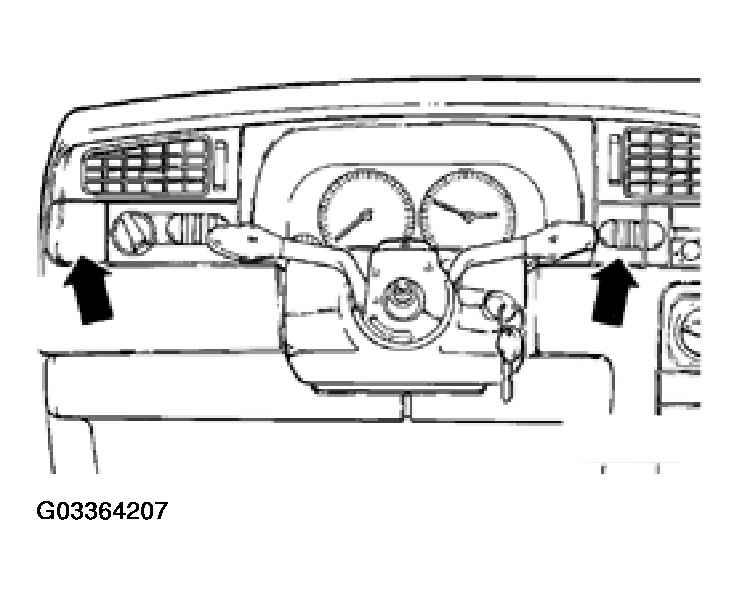

Fig 1: Prying Off Left And Right Trim Panel

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Left and right -side trim panels may be replaced by additional switches or warning lamps, depending on equipment level.
On vehicles equipped with heated seats, the driver's heated seat regulating switch -E94- and passenger's heated seat regulating switch -E95- are located on the right side of the instrument cluster. Refer to ADJUSTER FOR HEATED DRIVER'S SEAT -E94- AND ADJUSTER FOR HEATED PASSENGER SEAT -E95- (JETTA ONLY), REMOVING AND INSTALLING .

Vehicles without height adjustable steering column

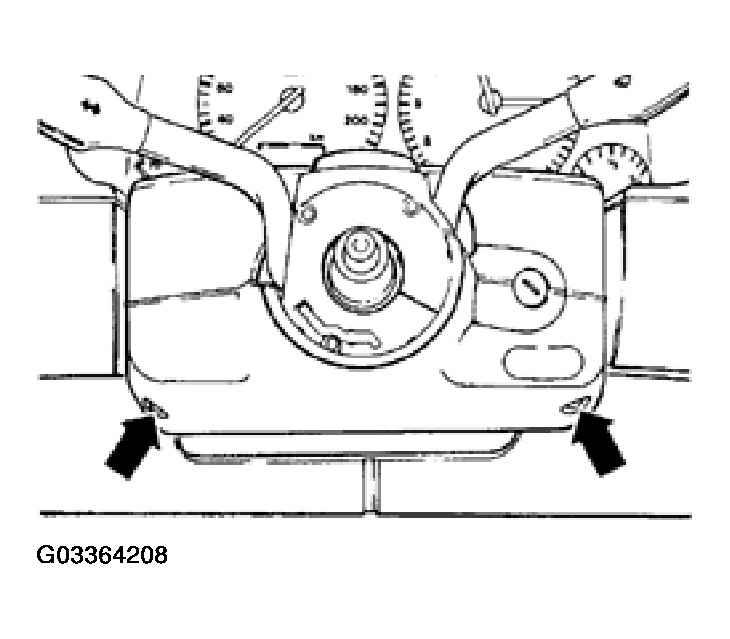

Fig 2: Removing Screws And Upper Part Of Steering Column Trim

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Vehicles with height adjustable steering column

It is not necessary to remove steering column trim.

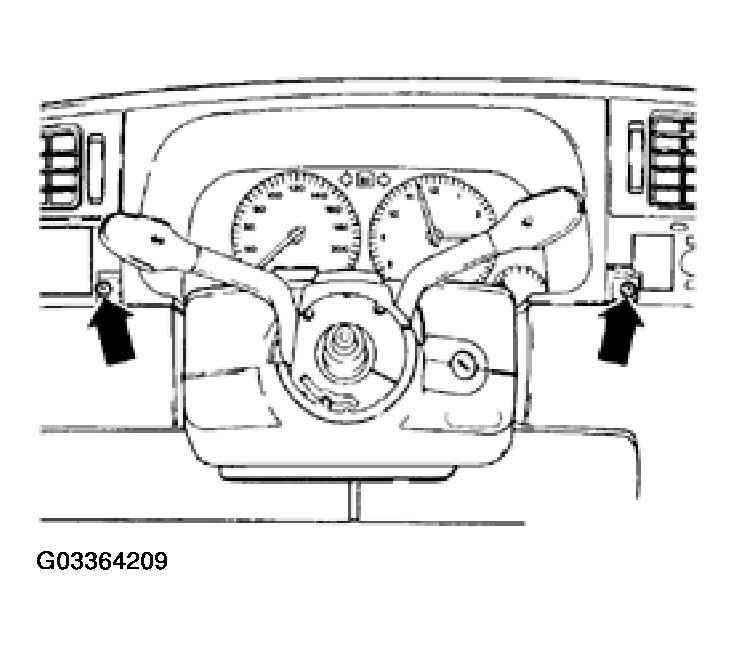

Fig 3: Removing Screws From Instrument Panel

Courtesy of VOLKSWAGEN OF AMERICA, INC.

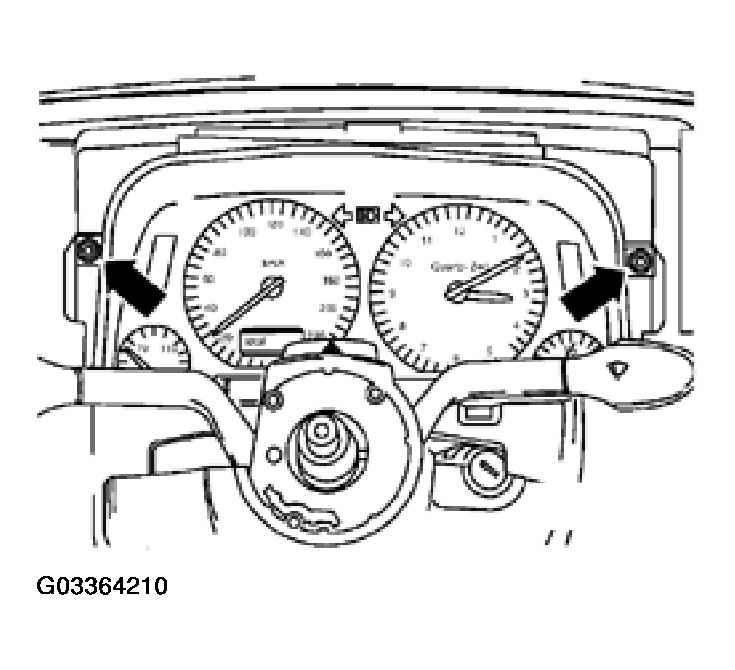

Fig 4: Removing Mounting Screws From Instrument Cluster

Courtesy of VOLKSWAGEN OF AMERICA, INC.
