Instrument cluster running change in production, from 01.96 and on

The airbag Malfunction Indicator Lamp (MIL) has been relocated to the instrument cluster. A low-fuel indicator warning light has also been added.

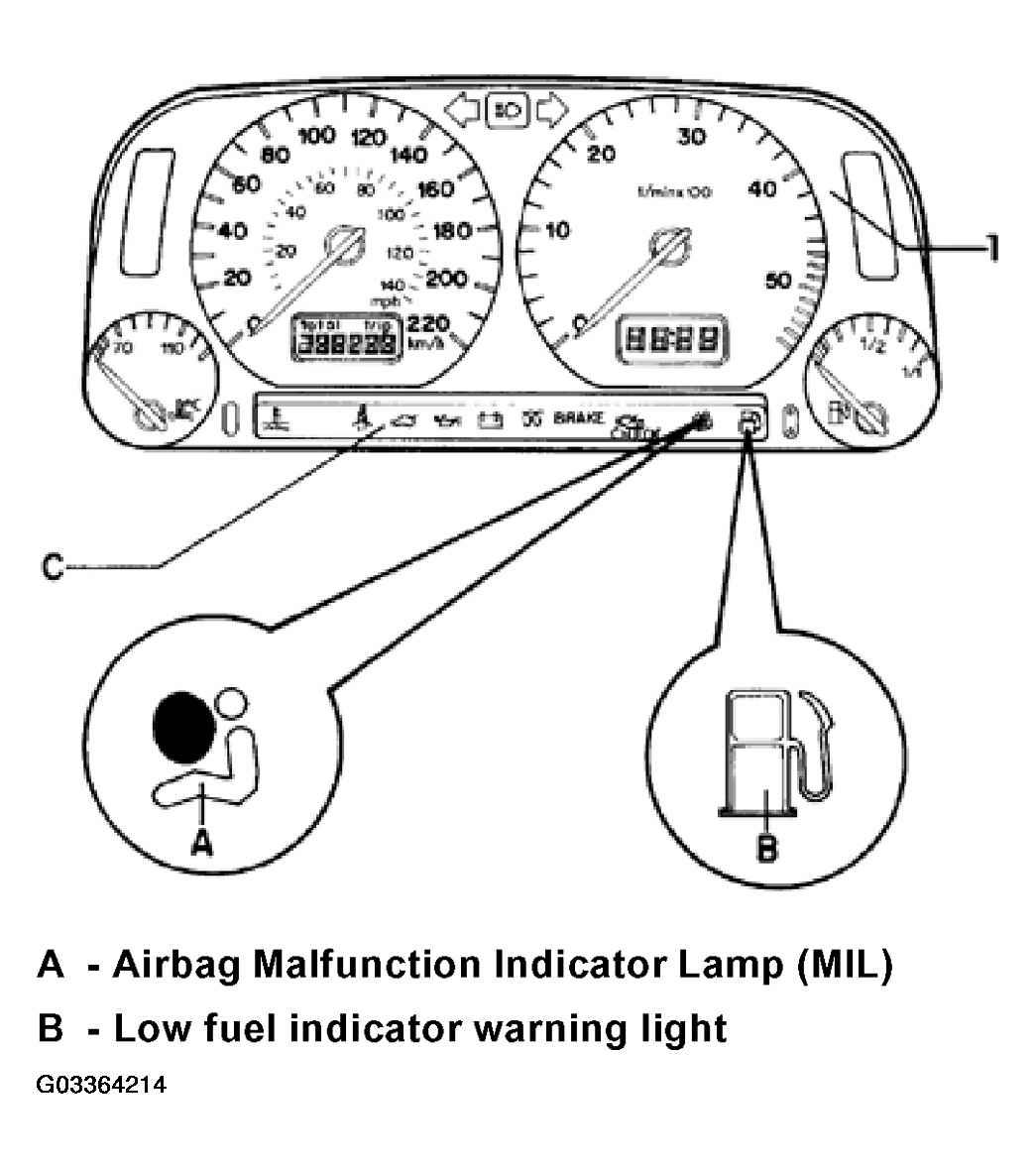

1. - Airbag Malfunction Indicator Lamp (MIL)
   • Now located in instrument cluster
   • Stays on after the ignition is switched on, or comes on while driving to indicate a malfunction
2. - Low fuel indicator warning light
   • Less than1.6 gallons: ON
   • At least 2.4 gallons: OFF
   • 1.6 to 2.4 gallons: may be either on or off

Fig 1: Identifying Airbag Malfunction Indicator Lamp (MIL) And Low Fuel Indicator Warning Light

Courtesy of VOLKSWAGEN OF AMERICA, INC.

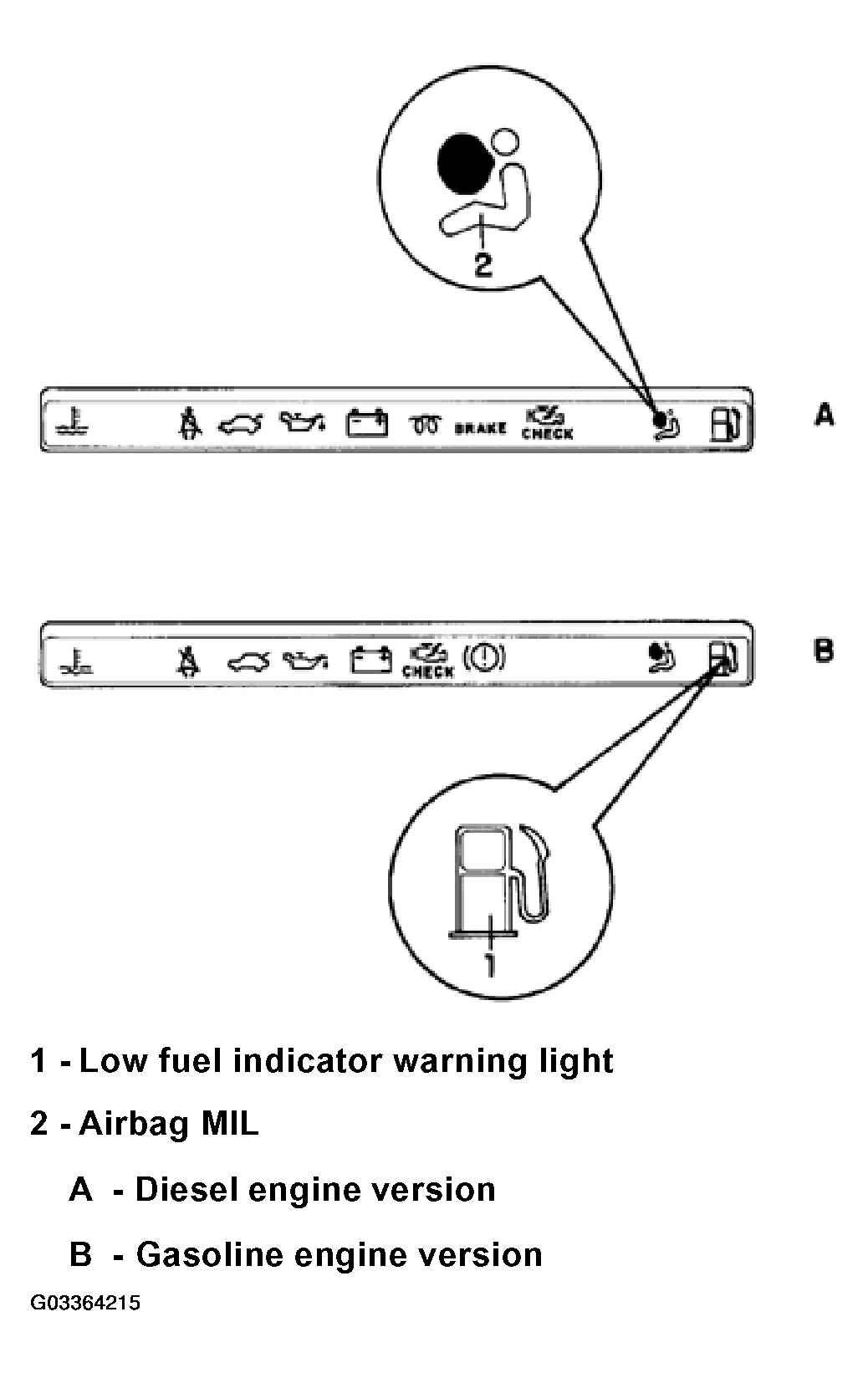

1. - Low fuel indicator warning light
2. - Airbag MIL
   1. - Diesel engine version
   2. - Gasoline engine version

Fig 2: Identifying Low Fuel Indicator Warning Light And Airbag MIL

Courtesy of VOLKSWAGEN OF AMERICA, INC.
