Suspension strut, disassembling and assembling: Notes

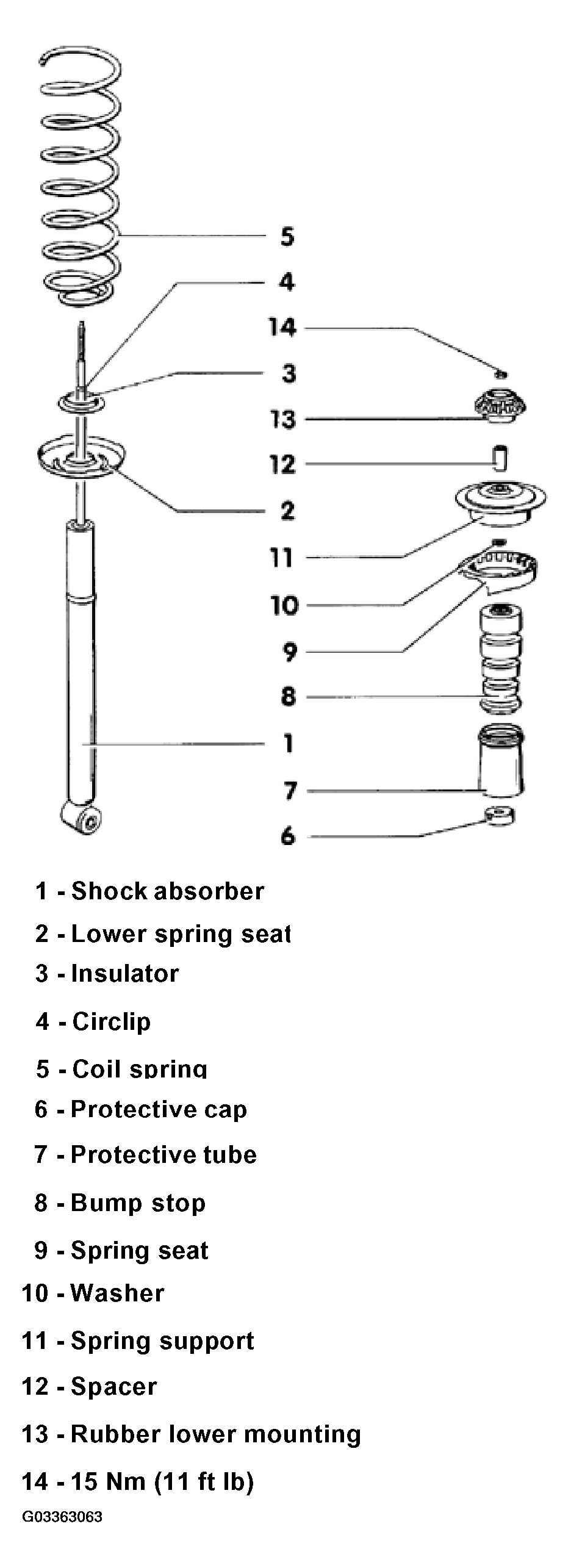

The following list pertains to Fig 1 .
- - Shock absorber
- Does not need to be replaced if only slight traces of oil are visible
- Replacing. See parts catalog.
- - Lower spring seat
- Installation position. See Installing Position Of Lower Spring Seat
- - Insulator
- - Circlip
- - Coil spring
- Replacing. See parts catalog.
- - Protective cap
- - Protective tube
- - Bump stop
- - Spring seat
- Installation position. See Installing Position Of Spring Seat
- - Washer
- - Spring support
- - Spacer
- - Rubber lower mounting
- - 15 N.m (11 ft lb)
