Installing Position Of Lower Spring Seat

  1. - Lower spring seat
  2. - Bushing in shock absorber eye
    CAUTION: The spring seat must be installed so that the holes -a- align with the bushing in the shock absorber eye -2-. Otherwise the spring seat -1- could interfere with the tire.

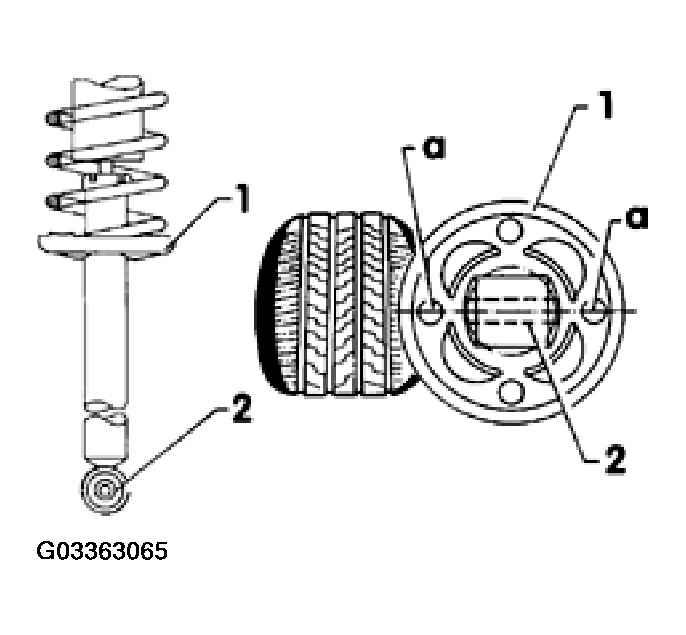

    Fig 1: Installing Position Of Lower Spring Seat
    G03363065
