Telematic system, component overview

WARNING: This page is about a different variant/trim than selected.

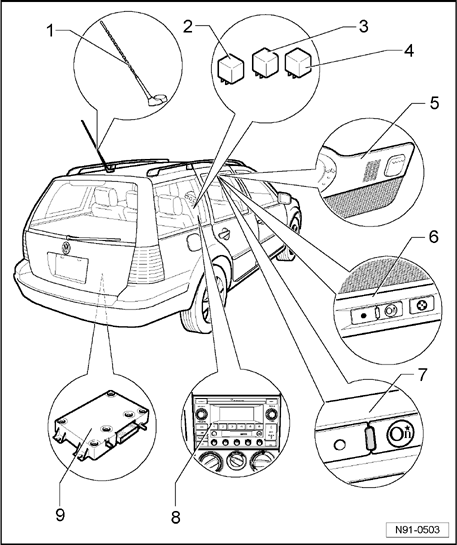

Fig 1: Identifying Telematic System Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Antenna -R11-, Antenna Amplifier -R24- and Antenna for Navigation System (GPS) -R50-

On roof, rear
Jetta Wagon, Golf & GTI, removing and installing. Refer to Antenna - Jetta Wagon, Golf & GTI, removing and installing .
Jetta sedan, removing and installing. Refer to Antenna - Jetta Sedan, removing and installing .

2 - Dual Horn Auxiliary Relay -J733-

3 - Auxiliary Emergency Flasher Relay -J517-

4 - Warning Lamp Auxiliary Relay -J734-

5 - Telephone Microphone -R38-

Integrated with front interior light module.
Removing and installing. Refer to Telephone Microphone -R38-, removing and installing .

6 - Telematic Control Head -E264-

In front headliner ahead of front interior light module.
OnStar ® buttons, description. Refer to Telematic Control Head - OnStar ® control buttons, description .
Includes telematics indicator lamp.
Removing and installing. Refer to Telematic Control Head -E264-, removing and installing .

7 - Telematics Indicator Lamp -K186-

In Telematic Control Head.
LED indicates telematic system operational status. Description. Refer to Telematic Control Head - OnStar ® telematics indicator lamp, description .
Telematic system, troubleshooting using telematics indicator lamp. Refer to Telematics system, troubleshooting using telematics indicator lamp .

8 - Radio -R-

9 - Telematic Control Module -J499-

Jetta Wagon, Golf & GTI - installed in luggage compartment in spare tire well.
Jetta sedan - installed in luggage compartment under parcel shelf.
Jetta Wagon, Golf & GTI, removing and installing. Refer to Telematic Control Module -J499- - Jetta Wagon, Golf & GTI, removing and installing .
Jetta sedan, removing and installing. Refer to Telematic Control Module -J499- - Jetta Sedan, removing and installing .

Control module multi-pin connector terminal assignments. Refer to Telematic Control Module -J499- multi-pin connector assignments .
