Front and rear window washer system, overview

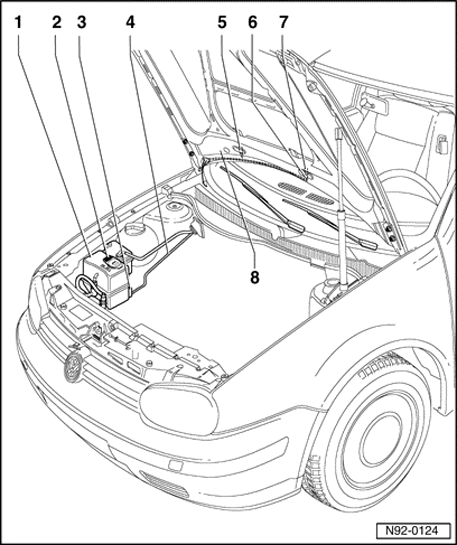

Fig 1: View Of Front And Rear Window Washer System Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Window & headlight* washer system reservoir

• Capacity 5.5 liters w/headlight washers*
• Removing and installing. Refer to Window & headlight washer system reservoir, removing and installing

2 - Cap

3 - Windshield Washer Pump -V5-

• Removing and installing. Refer to Windshield Washer Pump -V5-, removing and installing

4 - Washer hose

• Repairing. Refer to Washer hoses, repairing

5 - Washer jet

• Checking and adjusting. Refer to Windshield washer jets, checking and adjusting
• Removing. Refer to Windshield washer jets, removing and installing

6 - Washer jet

• Checking and adjusting. Refer to Windshield washer jets, checking and adjusting
• Removing. Refer to Windshield washer jets, removing and installing

*) Where applicable

Fig 2: View Of Front And Rear Window Washer System Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

7 - Cover

8 - Junction (behind cap)
