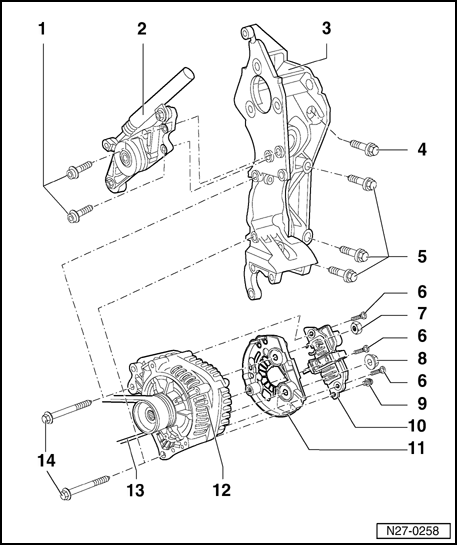

4-cylinder TDI engines with power steering from 05.99, assembly

1 - Hex socket bolts

• M8 x 45mm
• 25 Nm

2 - Tensioner

3 - Bracket

4 - Hex bolt

• M10 x 45mm
• 45 Nm

5 - Hex bolts

• M10 x 65mm
• 45 Nm

6 - Screws

7 - Nut

• M8

8 - Nut

• M8

9 - Screw

10 - Voltage Regulator (VR)

• Removing and installing. Refer to Voltage Regulator (VR), removing and installing
• Checking carbon brushes. Refer to Generator (GEN) carbon brushes, checking

11 - Protective cap

12 - Generator (GEN)

• Tightening torque B+ wire to generator. Refer to Generator (GEN) B+ & D+ connections, securing

13 - Ribbed belt

• Removing and installing. Refer to Ribbed belt, removing and installing
• Ribbed belt routing. Refer to Ribbed belt, routing

14 - Hex bolts

• M8 x 85mm
• 25 Nm
