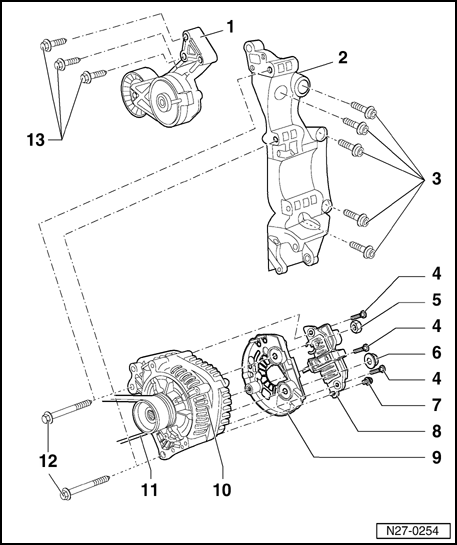

4-cylinder TDI - PD engine, assembly

1 - Tensioner

2 - Bracket

3 - Hex socket bolt

• M10 x 45mm
• 45 Nm

4 - Screws

5 - Nut

• M8

6 - Hex bolts

• M10 x 65mm
• 45 Nm

7 - Screws

8 - Voltage Regulator (VR)

• Removing and installing. Refer to Voltage Regulator (VR), removing and installing
• Checking carbon brushes. Refer to Generator (GEN) carbon brushes, checking

9 - Protective cap

10 - Generator (GEN)

• Tightening torque of B+ wire to generator. Refer to Generator (GEN) B+ & D+ connections, securing

11 - Ribbed belt

• Removing and installing. Refer to Ribbed belt, removing and installing  .
• Ribbed belt routing. Refer to Ribbed belt, routing  .

12 - Hex bolts

• M8 x 85mm
• 25 Nm

13 - Hex bolts

• M8 x 45mm
• 25 Nm
