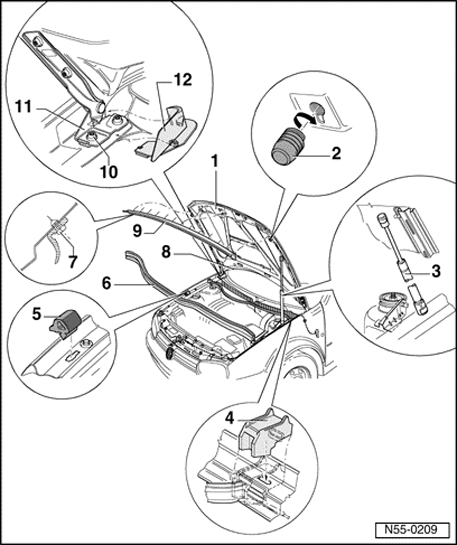

Assembly overview

1 - Hood

Removing

• Disconnect hoses for windshield washer system and remove washer nozzles.
• Remove gas-filled strut at lid.
• Unclip hinge cover and remove from hinge.
• Remove bolts and remove lid.

• Adjusting. Refer to Hood, adjusting

2 - Stopper

• By threading out and in, lid can be adjusted in height to fenders.

3 - Gas-filled strut

• Removing and installing. Refer to Gas-filled strut, removing
• Venting gas. Refer to Releasing gas from gas-filled strut

4 - Spacing device

5 - Guide piece

6 - Plenum chamber seal

• Inserted on flange

7 - Clip

8 - Hose/spray jet

• Removing. Refer to 92 WINDSHIELD WIPER & WASHER SYSTEM

9 - CW sealing piece

10 - Bolt

• 23 Nm

11 - Hinge

12 - Hinge cover

• Clipped
• Pull off at right angle
