Gas-filled strut, removing

WARNING: This page is about a different variant/trim than selected.

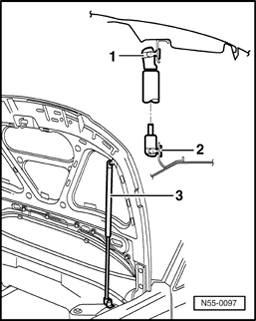

Fig 1: Identifying Gas-Filled Strut
GW00003448Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • When re-using gas-filled strut, do not pry securing clip - 1  - completely out of ball socket, otherwise securing clip may be damaged.
  1. Securing clip
  2. Mounting bracket with ball studs
  3. Gas-filled strut
