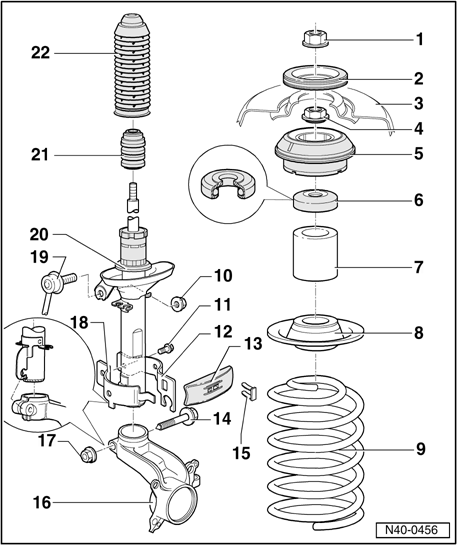

III - Front suspension strut, assembly overview
WARNING: This page is about a different variant/trim than selected.
1 - Self-locking hex nut, 60 Nm
- Replace each time it is removed
2 - Stop
3 - Suspension strut turret
4 - Hex nut, 60 Nm
5 - Strut mount
6 - Axial groove ball bearing
7 - Bushing
Only installed to vehicles with heavy duty suspension (PR No. 1GB)
This PR No. is entered on the vehicle data label in luggage compartment or service booklet
8 - Spring plate
9 - Coil spring
- Observe color coding
- Surface of the winding must not be damaged
- Application to vehicle see Vehicle data plate, → Vehicle data sticker
10 - Nut, self-locking
- 50 Nm and turn additional 90 °
- Replace each time it is removed
11 - Hex head bolt, 10 Nm
12 - Bracket
13 - Heat shield
14 - Hex head bolt
- Replace each time it is removed
- Tip of the bolt must point in direction of travel
15 - Clip
16 - Wheel bearing housing
17 - Nut, self-locking
- 60 Nm and turn additional 90 °
- Never less than 90 ° !
- Turning angle tolerance 90 ° to 120 °
- Replace each time it is removed
18 - Clamp
19 - Connecting Link
20 - Damper
- Can be replaced individually
- Application See Parts Catalog
21 - Bump stop
22 - Protective sleeve
