Vehicle data sticker

WARNING: This page is about a different variant/trim than selected.

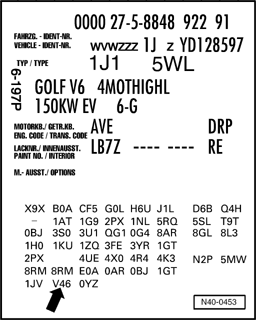

Fig 1: Vehicle Data Sticker

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Example of a vehicle data sticker

Various springs are installed depending on engine and equipment level. Each spring is allocated to a certain weight class.

For example

Weight class V46 - arrow - corresponds to coil spring 1J0 411 105 CD

Which springs are installed in the vehicle is documented on the vehicle data label with the relevant PR. number of the weight class.

With the help of this PR number you can find the appropriate spring for the vehicle in the parts catalog.

The vehicle data sticker is located in spare wheel well and in Maintenance booklet.
