B-pillar trim, removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

Remove side trim. See SIDE TRIM, REMOVING .
Unclip cover -1-, remove bolt -2- and take relay -3- off.
- Tightening torque bolt -2-: 40 N.m (30 ft lb)

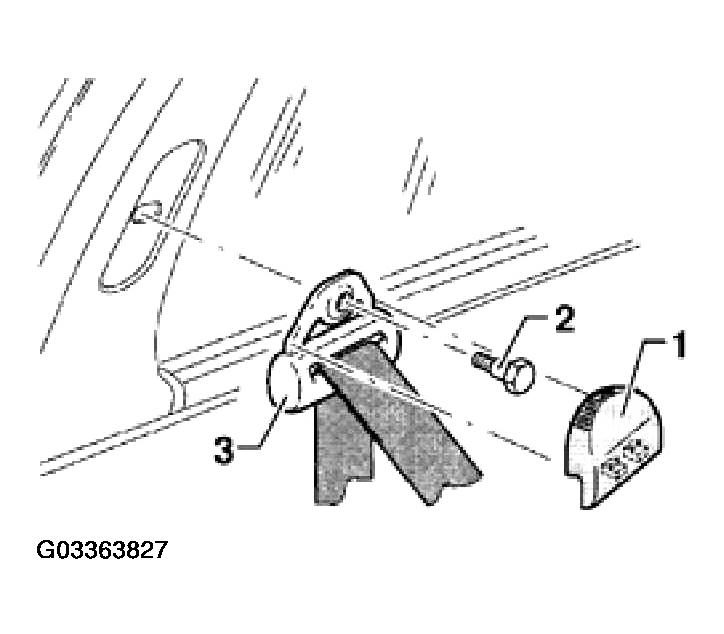

Fig 1: Uncliping Cover For Removing Bolt And Relay
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Unclip cover -1-, remove screw -2- and remove hook -3-. See Fig 2 .

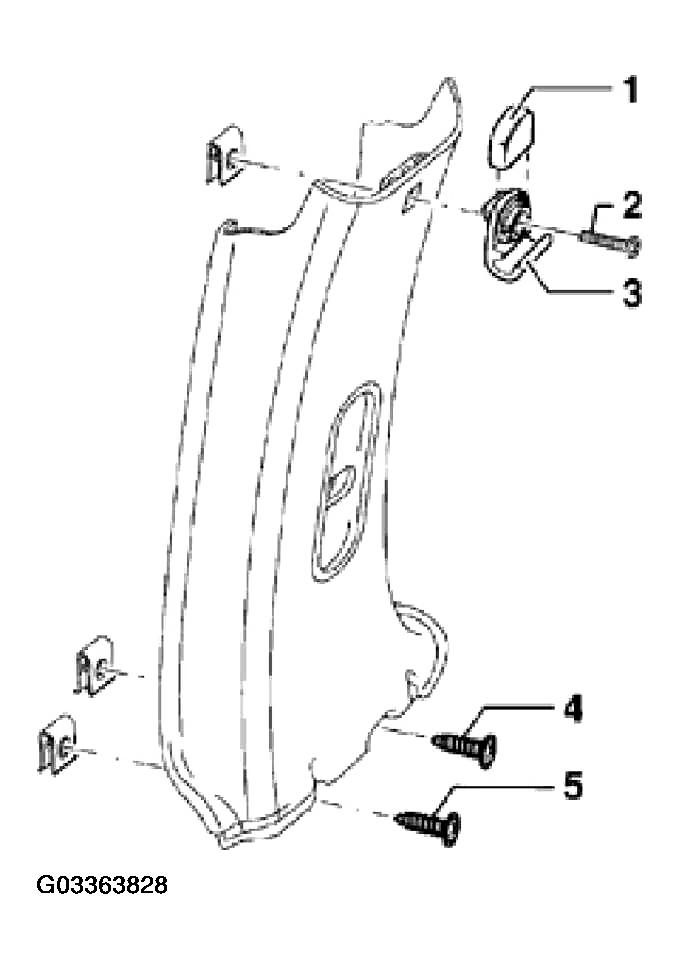

Fig 2: Removing B-Pillar Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove screws -4- and -5- and remove B-pillar trim.
