Side trim, removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

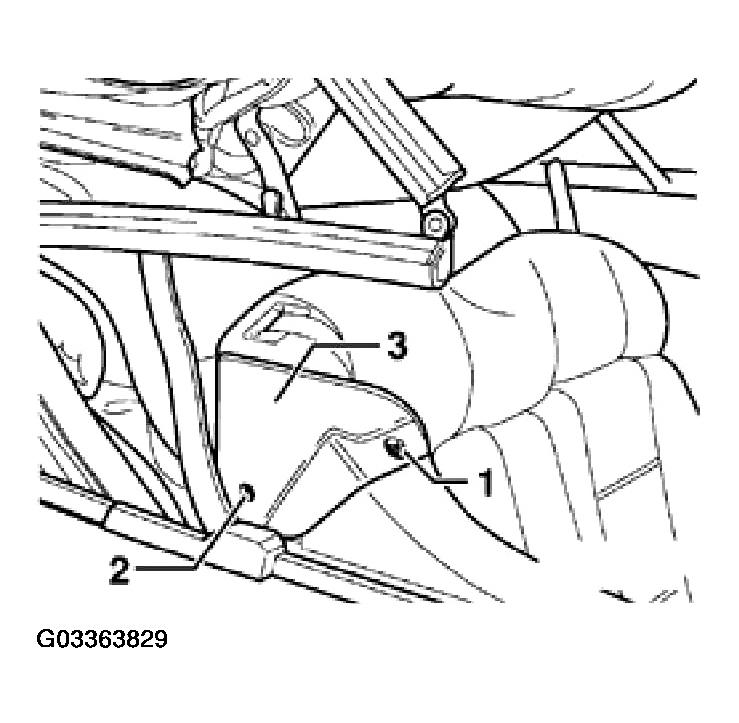

Partially open convertible top, as shown.

Fig 1: Partially Opening Convertible Top
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove ball pin for press stud -1- and screw -2-. See Fig 1 .
Remove cover -3- and lower convertible top completely.
Remove rear seat. See REAR SEAT, REMOVING . Remove lower backrest. Refer to REAR SEATS .

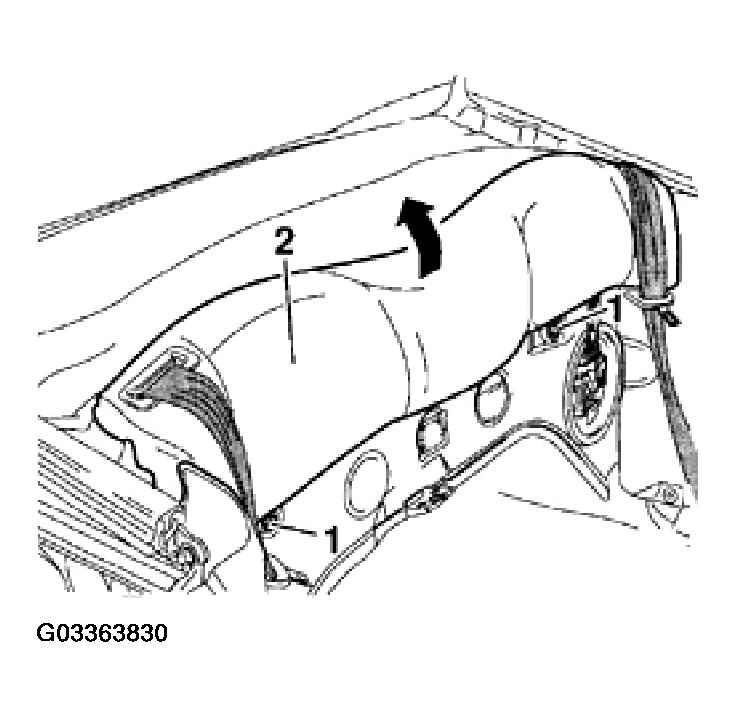

Remove bolt -1- take backrest upper part -2- off upward and place on opened convertible top.

Fig 2: Removing Backrest Upper Part Upward
Courtesy of VOLKSWAGEN OF AMERICA, INC.

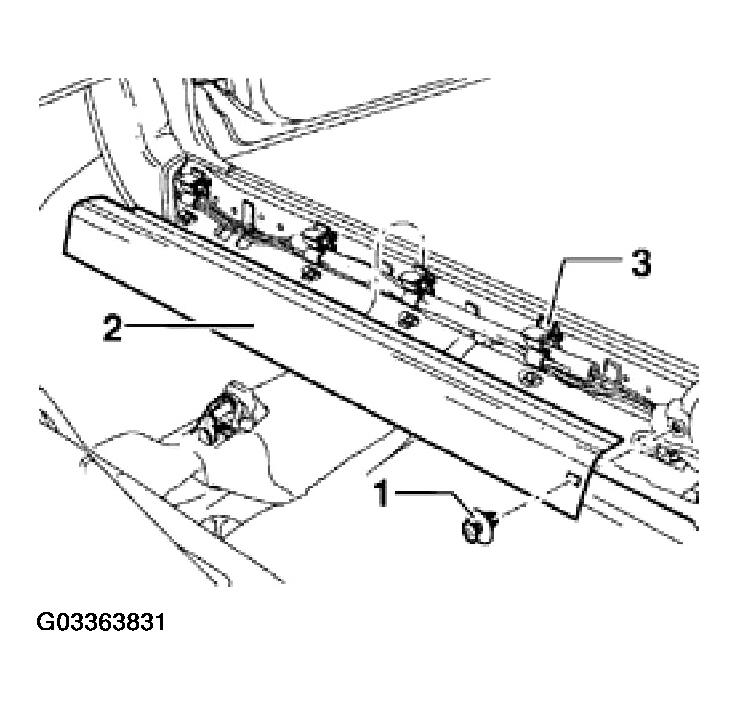

Remove clip -1- and pull sill panel cover -2- off upward out of clips -3-.

Fig 3: Removing Sill Panel Cover
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove window crank. See WINDOW CRANK, REMOVING .

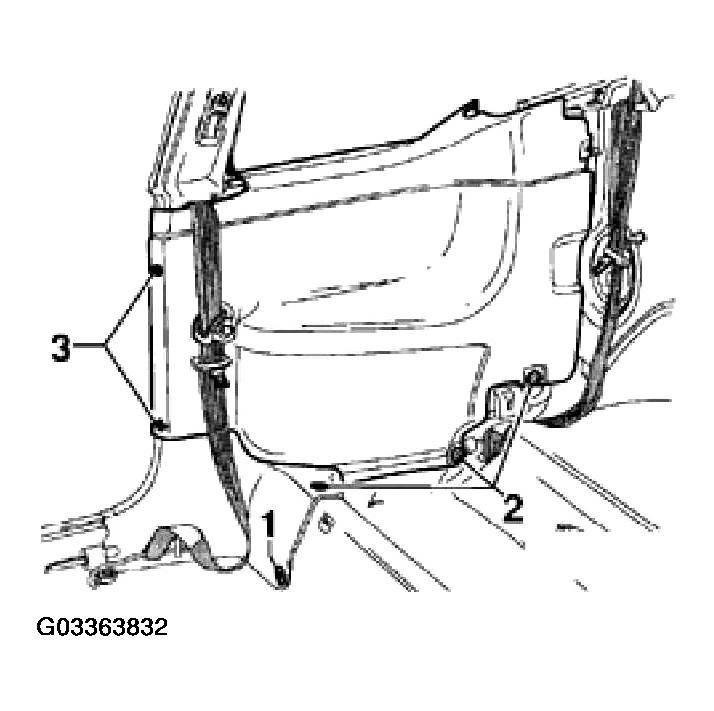

Remove clip -1- and pry clips -2- out.

Fig 4: Locating Side Trim Clips
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove screws -3- and remove side trim.
