Front seat belts with belt tensioning system, removing and installing
WARNING:
- Before starting any body disassembly, straightening or any other body repair work, belt tensioning units must be removed.
- After an accident in which one or more belt tensioners have been activated, both seat belts must be replaced (belts will no longer retract).
NOTE:

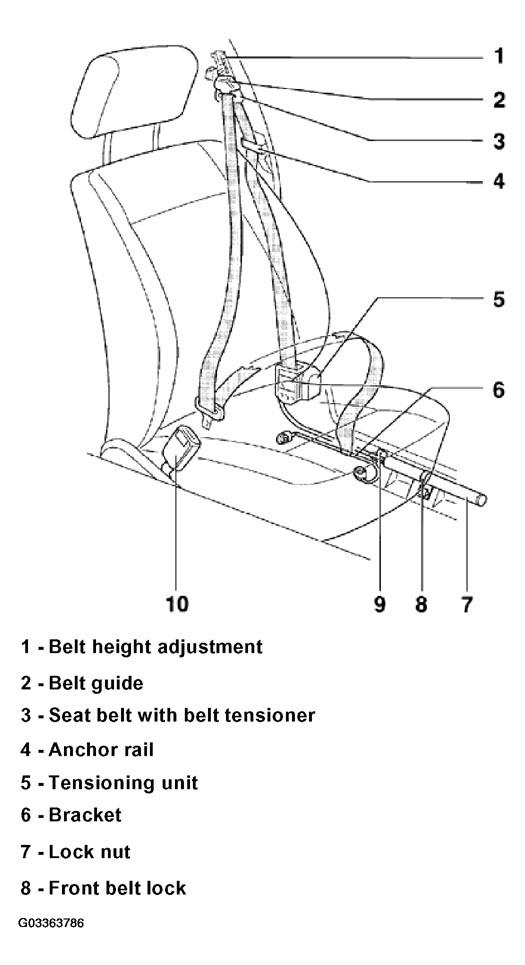

The following list refers to Fig 1
.
- - Belt height adjustment
- Removing belt height adjustment fitting. See BELT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING .
- - Belt guide
- Secured with 2 screws
- 1.5 N.m (13 in. lb)
- - Seat belt with belt tensioner
- Removing. See FRONT BELT REEL AND ANCHOR RAIL WITH TENSIONER, REMOVING AND INSTALLING .
- Retaining tabs determine position of belt reel
- - Anchor rail
- - Tensioning unit
- Removing. See FRONT BELT REEL AND ANCHOR RAIL WITH TENSIONER, REMOVING AND INSTALLING .
- Integral part of seat belt
- Loosening lock nut - 7 - makes belt tensioner safe
- Tightening lock nut - 7 - will make belt tensioner operational
- - Bracket
- - Lock nut
- 20 N.m (15 ft lb)
- Integral part of tensioning unit
- - Front belt lock
- Removing. See FRONT BELT LATCH, REMOVING AND INSTALLING .
