Belt height adjustment, removing and installing

B-pillar trim removed. See B-PILLAR TRIM, REMOVING .

1. - Seat belt height adjustment
   • Removing: Remove bolt -2- and pull belt relay off upward.
2. - Bolt
   • 23 N.m (17 ft lb)
3. - B-pillar trim
   • Removing. See B-PILLAR TRIM, REMOVING .
4. - Belt relay
5. - Combi bolt
   • 40 N.m (30 ft lb)
6. - Cover
   • Push on
7. - Screw
   • 1.5 N.m (13 in. lb)
8. - Screw
   • Only right side
   • 1.5 N.m (13 in. lb)
9. - Screw
   • Only left side
   • 1.5 N.m (13 in. lb)
10. - Belt relay

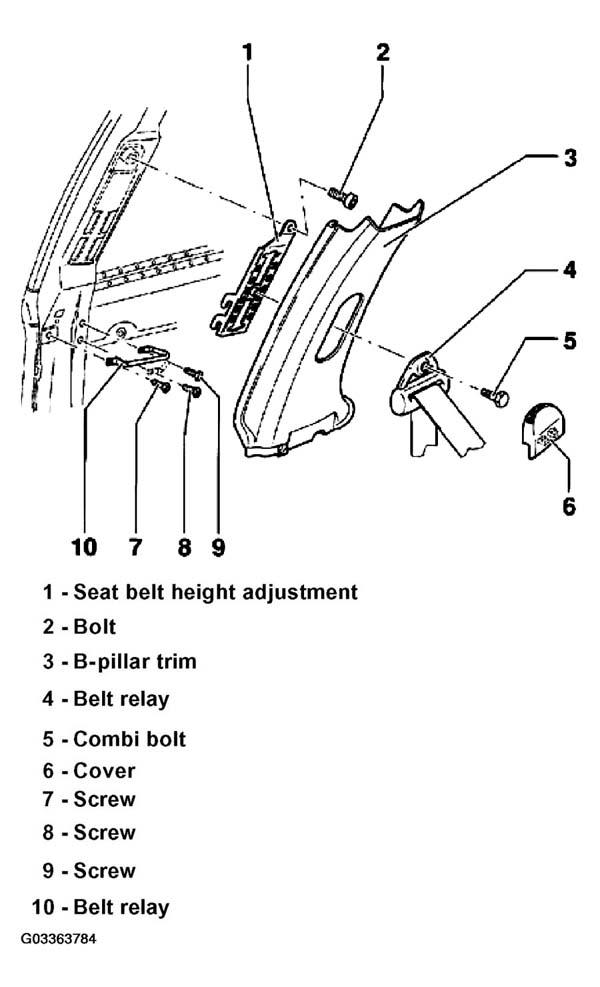

Fig 1: Exploded View Of Belt Height Adjustment Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.
