Front belt reel and anchor rail with tensioner, removing and installing: Removing
NOTE:

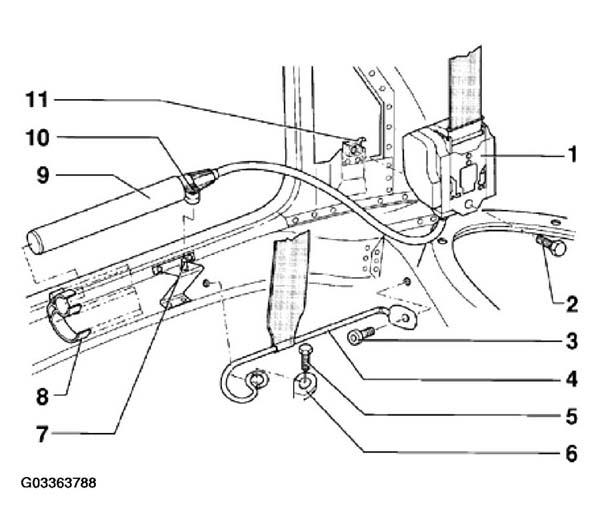

The following list refers to Fig 1
.
- Remove sill panel trim.
- Remove B-pillar trim and/or side panel trim. See B-PILLAR TRIM, REMOVING and/or SIDE TRIM, REMOVING .
- Loosen lock nut - 10 - to remove tensioner - 9 - and make it safe to work with.
- Remove anchor rail -4-. See FRONT BELT REEL AND ANCHOR RAIL, REMOVING AND INSTALLING .
- Remove belt guide.
- Remove inertia reel - 1 -.
- Pull tensioner - 9 - out from cable channel - 8 -.WARNING: Installation must be performed in reverse order.
