Front belt reel and anchor rail, removing and installing

Side trim removed. See SIDE TRIM, REMOVING .

NOTE: The following list refers to Fig 1 .
  1. - Front belt reel
    • Retaining tabs determine position of belt reel
  2. - Bolt
    • 40 N.m (30 ft lb)
  3. - Anchor rail
  4. - Bolt
    • 40 N.m (30 ft lb)
  5. - Eye cap

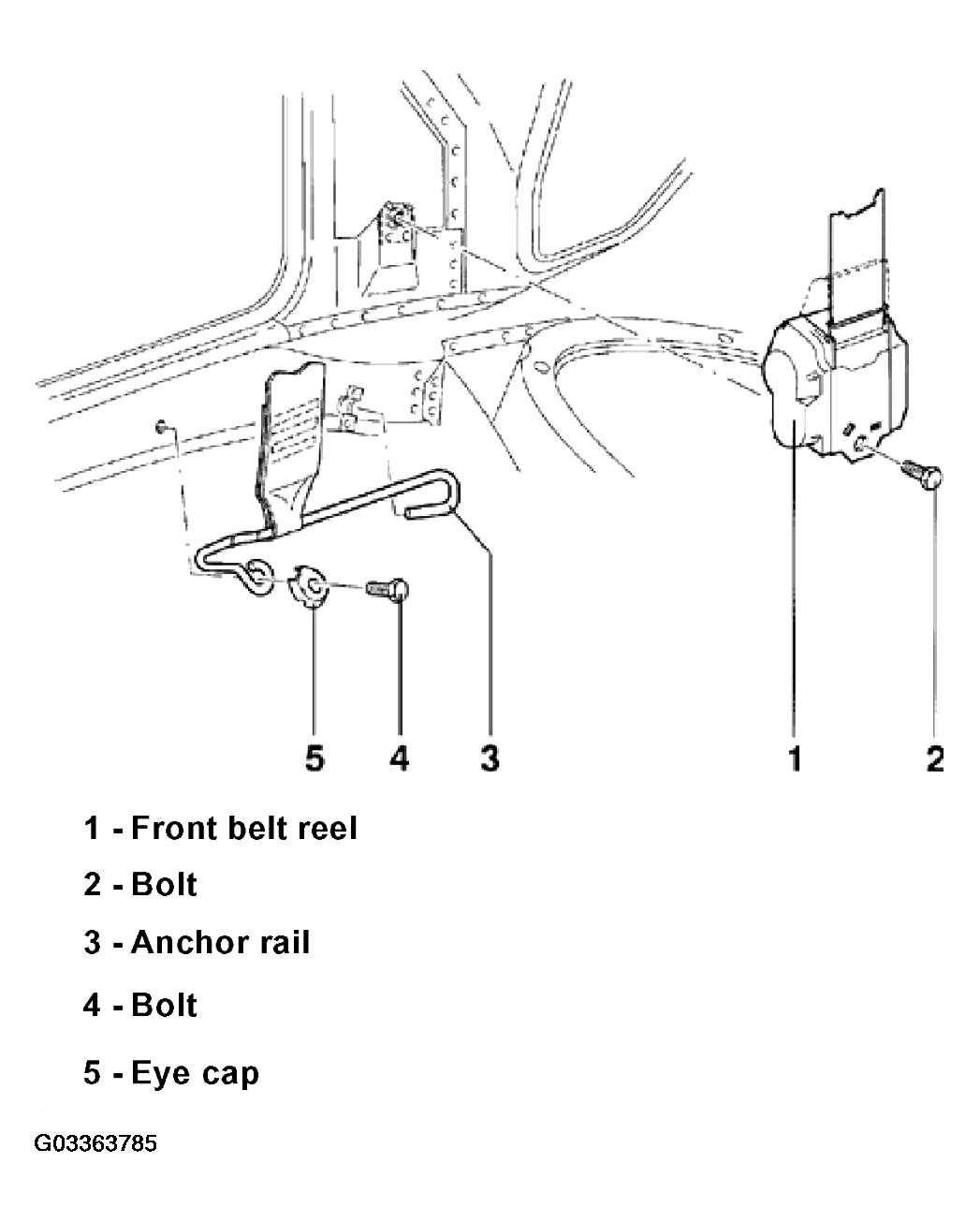

    6. Fig 1: Identifying Front Belt Reel And Anchor Rail Components
    G03363785Courtesy of VOLKSWAGEN OF AMERICA, INC.
