Driver's airbag unit, removing and installing from 03.98 and up: Notes

NOTE: The following list refers to Fig 1 .

- Steering wheel
- Connector
- Locking lug
- Release from rear of steering wheel
- Airbag unit
- Removing. See REMOVING .
- Installing. See INSTALLING .
- Hexagon combi-nut
- 50 N.m
- Securing plate
- Clip

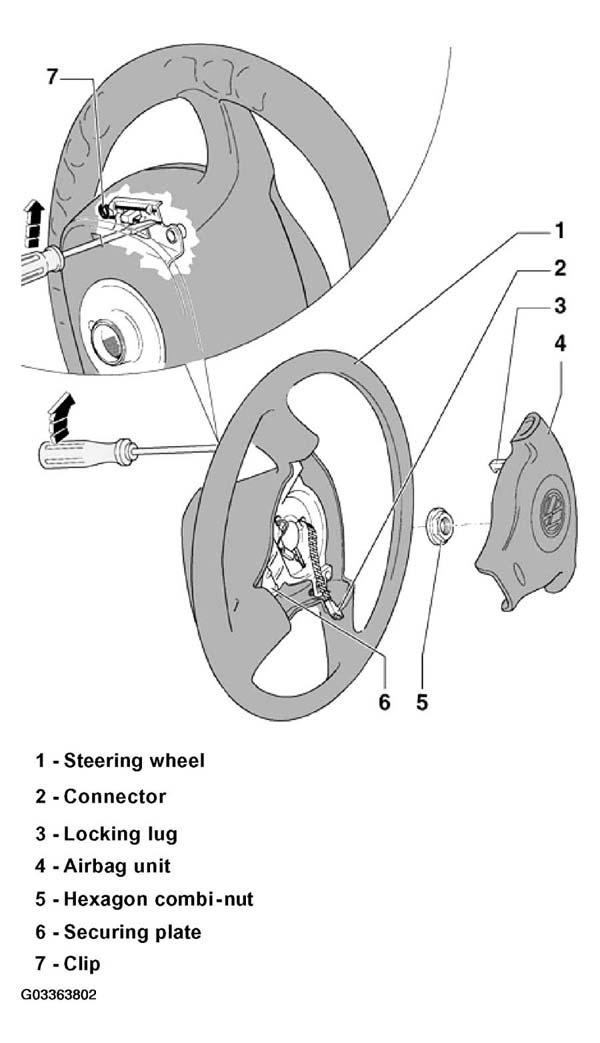

Fig 1: Driver's Airbag Unit (From 03.98 & Up)

G03363802

Courtesy of VOLKSWAGEN OF AMERICA, INC.
