Restraints
>>
Passenger Protection - Airbags, Seat Belts
>>
Airbag, locations overview
>>
Driver's airbag unit, removing and installing from 03.98 and up
>>
Installing
Driver's airbag unit, removing and installing from 03.98 and up: Installing
Fit connector to airbag and press airbag into steering wheel until it locks.
Switch on ignition.
Close doors.
Connect battery Ground (GND) strap.
WARNING:
Make sure no one is in the vehicle.

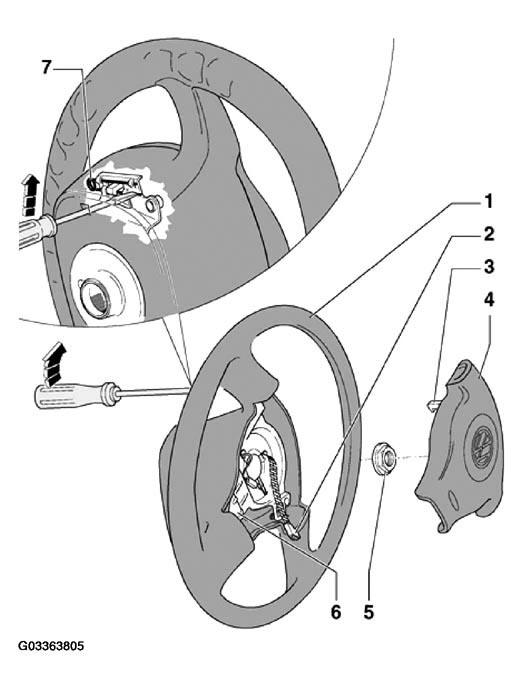

Fig 1: Installing Driver's Airbag Unit (From 03.98 & Up)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
