Front Trunk Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Open the hood.

   Courtesy of VINFAST, LLC

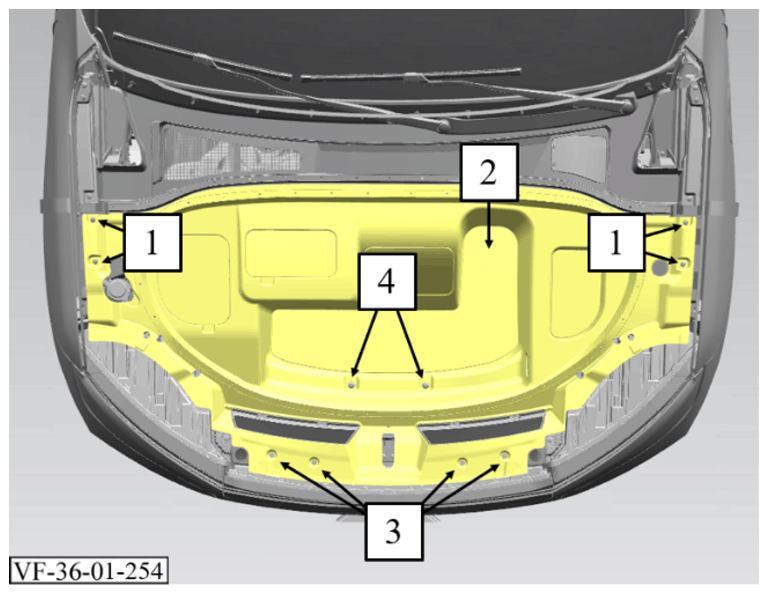

2. Remove 4 expanding rivets (1).
3. Remove the frunk carpet (2).
4. Remove 4 screws (3).

   Torque: 2.6 Nm

5. Remove 2 bolts (4).

   Torque: 6 Nm

   Courtesy of VINFAST, LLC

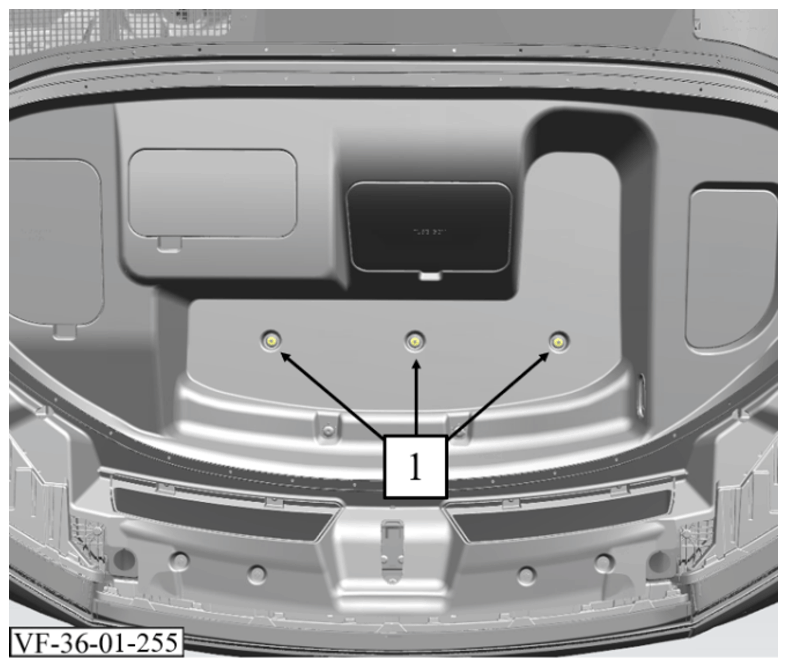

6. Remove 3 nuts (1).

   Torque: 4 Nm

   Courtesy of VINFAST, LLC

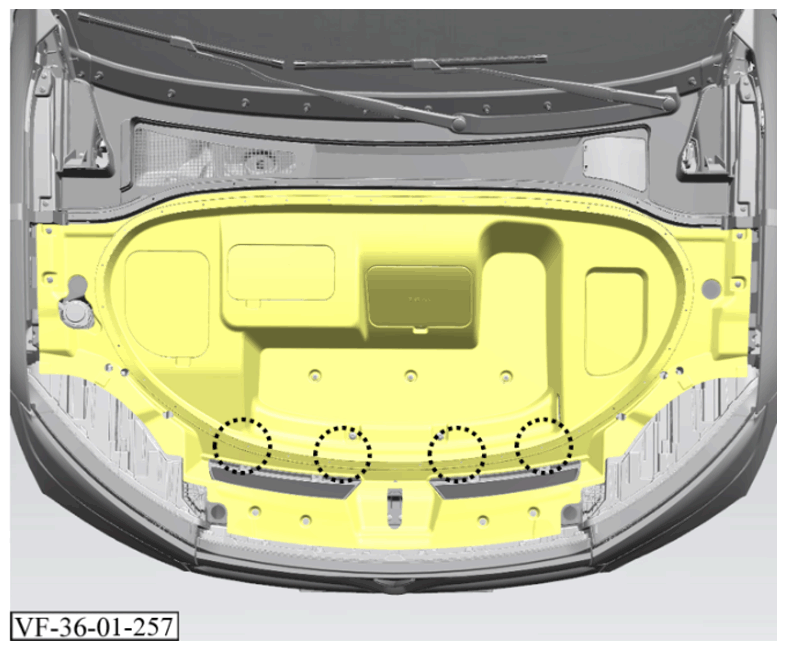

7. Pull up the front trunk at the marked points and unclip it.
8. Lift up the front trunk.

   Courtesy of VINFAST, LLC

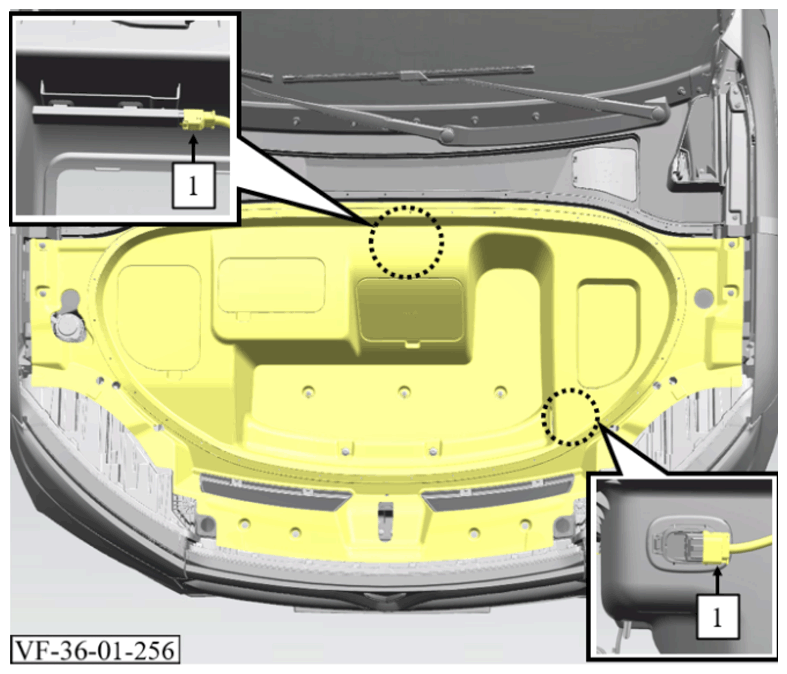

9. Unlock and disconnect the 2 electrical connectors (1).
10. Remove the front trunk.

Replacement Procedure:

1. Rebuild hood frunk weatherstrip. Refer to HOOD FRUNK WEATHERSTRIP REMOVAL AND INSTALLATION/REPLACEMENT
2. Rebuild frunk emergency switch. Refer to FRUNK EMERGENCY SWITCH REMOVAL AND INSTALLATION/REPLACEMENT
3. Rebuild frunk LF antenna. Refer to FRUNK LF ANTENNA REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following All fasteners must be tightened to torque specification!
