Frunk LF Antenna Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front trunk. Refer to Front Trunk Removal and Installation  /REPLACEMENT

   Courtesy of VINFAST, LLC

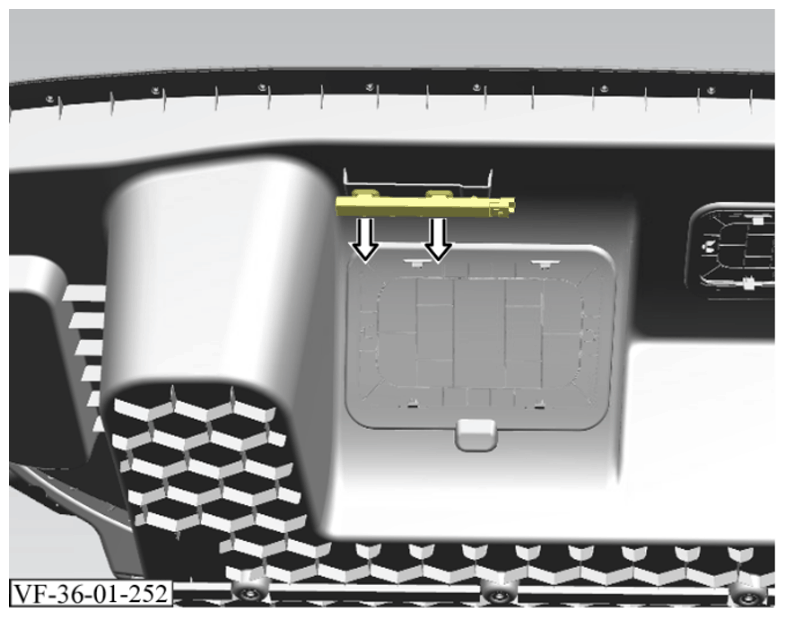

2. Clip out the frunk LF antenna from the front trunk in arrow direction.
3. Remove the frunk LF antenna.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING IDS IN SERVICE
