Heater Core Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove the HVAC Assembly. Refer to HVAC ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

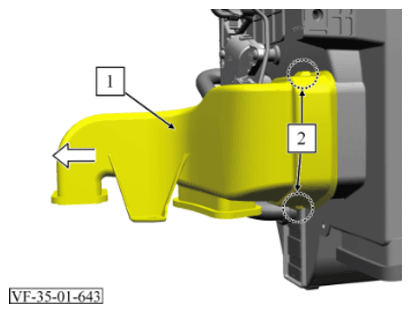

2. Lever the air duct (1) over both latches (2) with a screwdriver and remove in the direction of the arrow.

   Courtesy of VINFAST, LLC

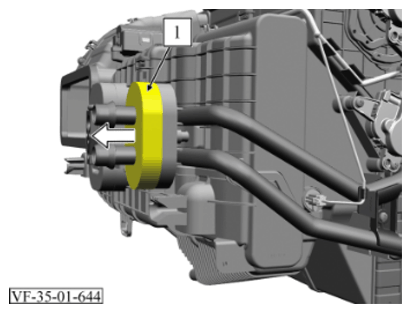

3. Pull off the seal (1) in the direction of the arrow and remove it.

   Courtesy of VINFAST, LLC

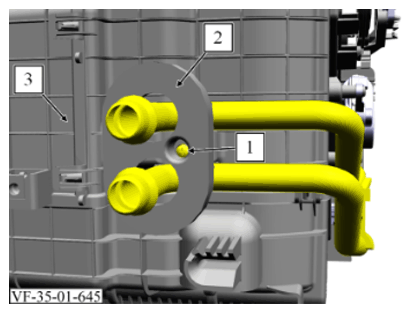

4. Remove the screw (1).

   Torque: 1 Nm

5. Loosen and remove the retaining plate (2) from the heating/air conditioning unit (3).

   Courtesy of VINFAST, LLC

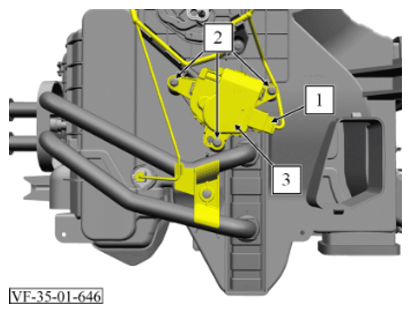

6. Unlock and disconnect the electrical connector (1).
7. Remove 3 Screws (2).

   Torque: 1 Nm

8. Remove the actuator (3).

   Courtesy of VINFAST, LLC

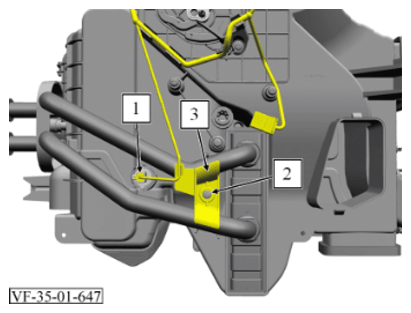

9. Unlock and disconnect the electrical connector (1).
10. Remove screw (2).

    Torque: 1 Nm

11. Remove retainer (3).

    Courtesy of VINFAST, LLC

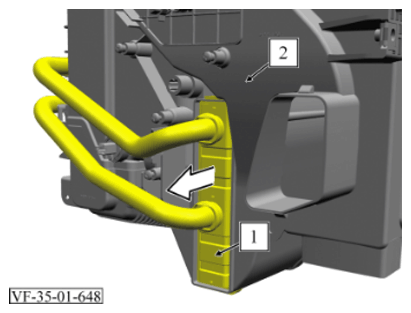

12. Pull the heating heat exchanger (1) out of the heating/air conditioning unit (2) and remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install the HVAC Assembly. Refer to HVAC ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT
