HVAC Climate Control Module Rear Removal And Installation/Replacement

Mobile Repair Possible:  No

Overview:

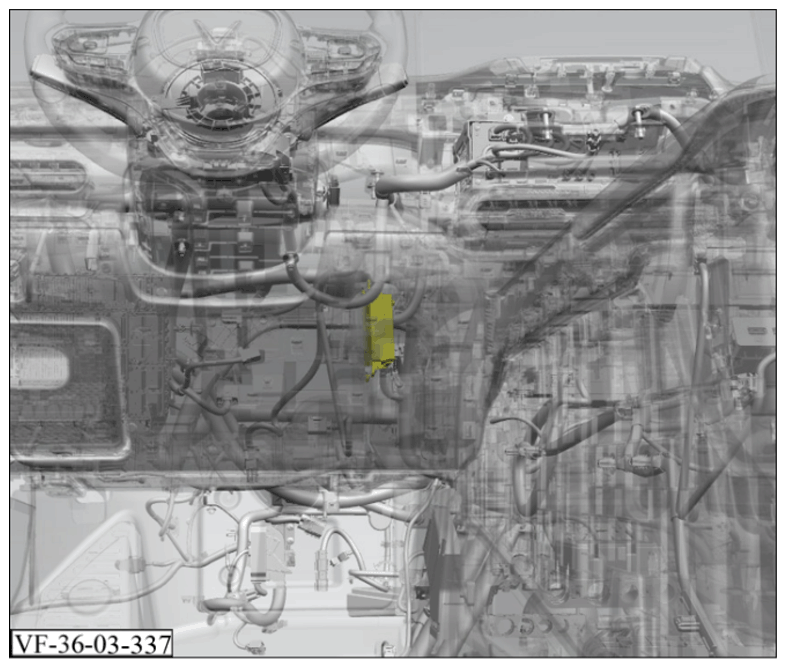

Fig 1: HVAC Climate Control Module Rear Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Remove the HVAC assembly. Refer to HVAC ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

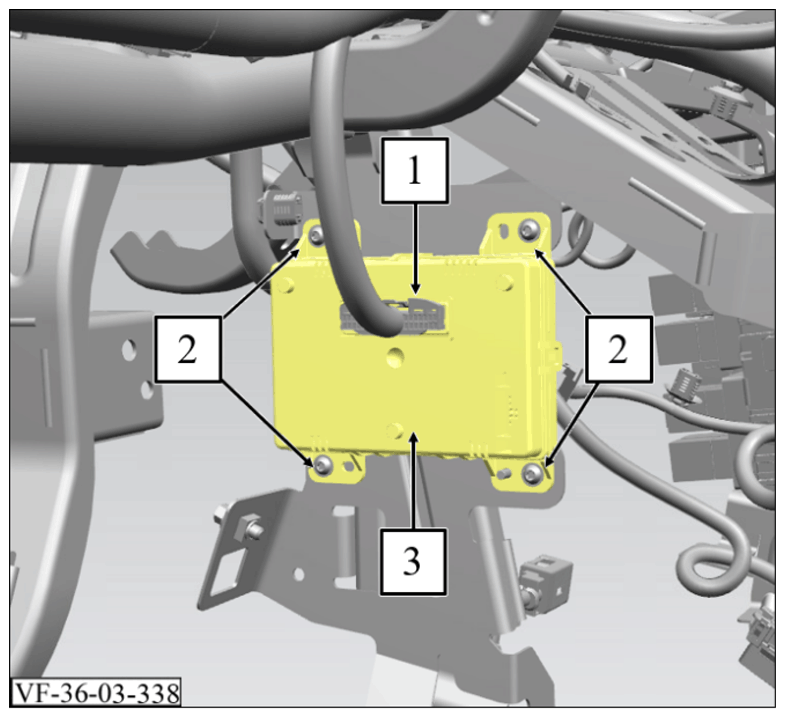

2. Unlock and disconnect the electrical connection (1).
3. Remove 4 screws (2).

   Torque: 1.2 Nm

4. Remove the HCAV control module (3).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install the HVAC assembly. Refer to HVAC ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT
