Evaporator Air OFF Temperature Sensor Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove Driver Under Tray Panel. Refer to INSTRUMENT PANEL UNDER TRAY REMOVAL AND INSTALLATION/REPLACEMENT (DRIVER)

   Courtesy of VINFAST, LLC

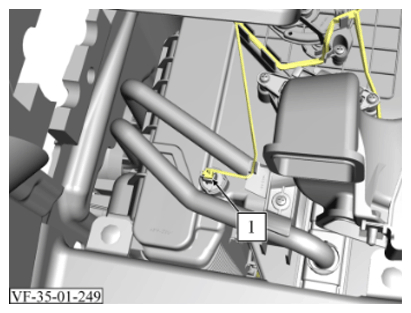

2. Unlock and disconnect the electrical connector (1).

   Courtesy of VINFAST, LLC

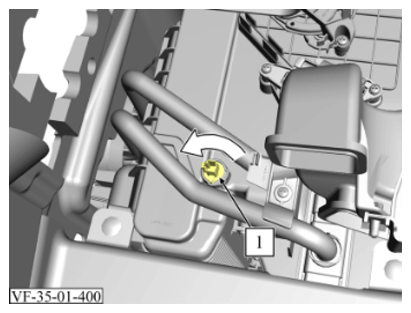

3. Turn the Evaporator Air OFF Temperature Sensor (1) 90 degrees in arrow direction and remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following

   All fasteners must be tightened to torque specification!

2. Install the Driver Under Tray Panel. Refer to INSTRUMENT PANEL UNDER TRAY REMOVAL AND INSTALLATION/REPLACEMENT (DRIVER)
