Instrument Panel Under Tray Removal And Installation/Replacement (Driver)

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION

   Courtesy of VINFAST, LLC

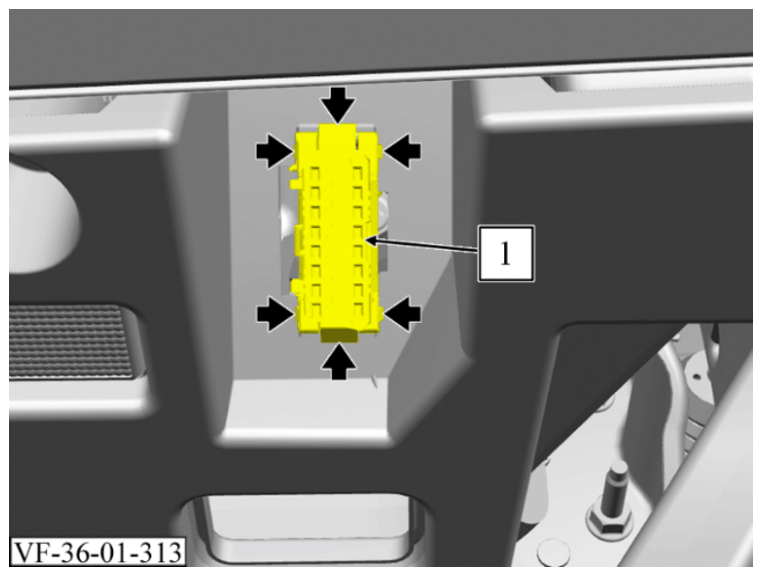

2. Release OBD connector (1) at the 6 latches and thread it through to the rear.

   Courtesy of VINFAST, LLC

3. Remove the bolt (1).

   Torque: 8 Nm

4. Remove the 2 fastening plugs (2), fold down the instrument panel under tray (3) and guide it to the rear out of the footwell.

   Courtesy of VINFAST, LLC

5. Unlock and disconnect electrical connector (1) of the interior lamp.
6. Remove instrument panel under tray (2).

Replacement Procedure:

Courtesy of VINFAST, LLC

1. Unclip and remove the interior lamp (1) in the direction of the arrow.

   Courtesy of VINFAST, LLC

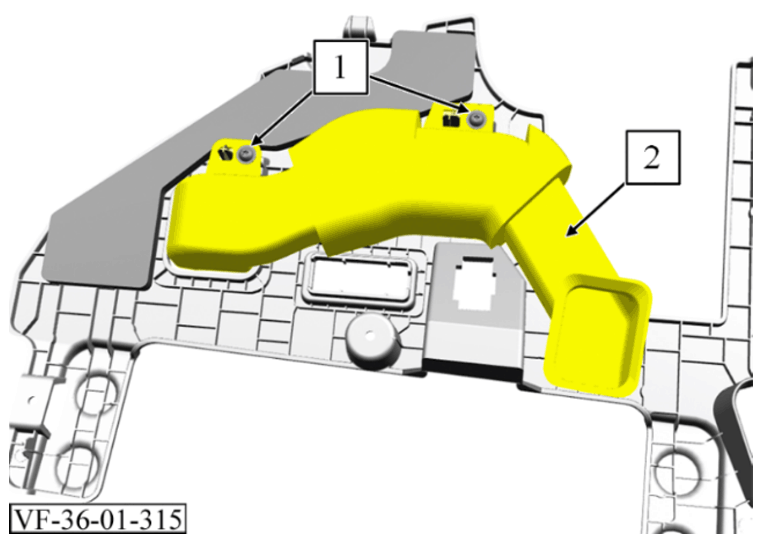

2. Remove 2 screws (1).

   Torque: 3 Nm

3. Remove front floor air outlet duct on the driver side (2).

Installation Procedure:

Courtesy of VINFAST, LLC

Installations note: The rear clips (1) must be engaged and the Clips (2) must be undamaged.

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
