Air Ionizer Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove HVAC assembly. Refer to HVAC ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

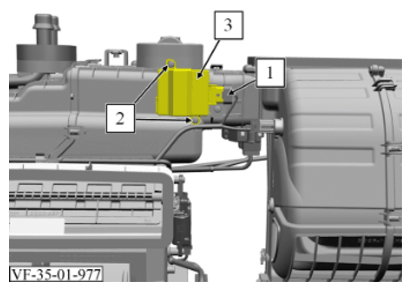

2. Unlock and disconnect electrical connector (1).
3. Remove 2 screws (2)

   Torque: 1 Nm

4. Remove air ionizer (3).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install HVAC assembly. Refer to HVAC ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT
