Front Floor Console Rear Upper Cover Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

Removal Procedure:

1. Move the front seat all the way forward.

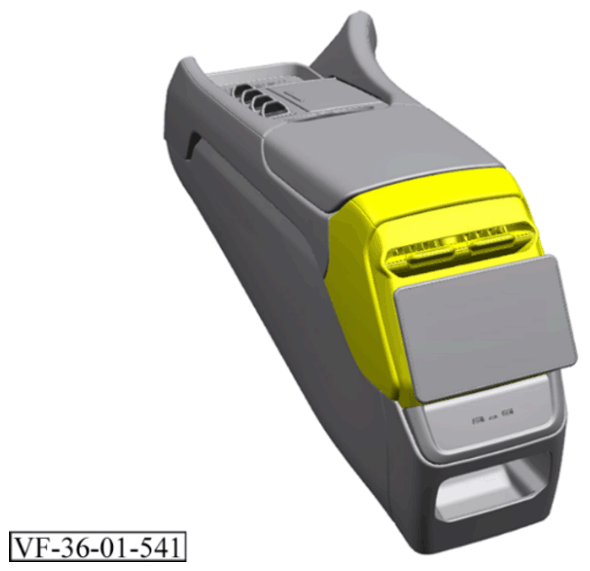

2. Carefully pry out the rear cover (1) at the marked points (black arrows) using a flat plastic trim tool and pull rearwards.

   Courtesy of VINFAST, LLC

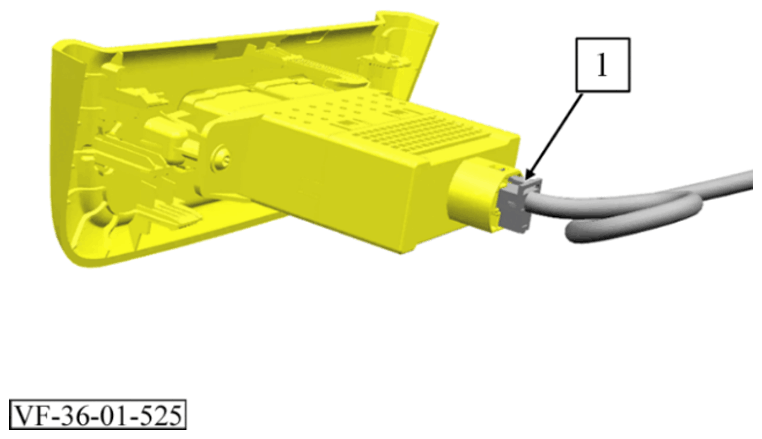

3. Unlock and disconnect the electrical connector (1).
4. Remove the rear cover.
5. If Installed: Remove Multimedia Display Rear. Refer to MULTIMEDIA DISPLAY REAR REMOVAL AND INSTALLATION/REPLACEMENT
6. Carefully pry out the rear cover (1) all around at the marked points (black arrows) using a flat plastic trim tool and pull rearwards to remove.

Replacement Procedure:

1. Rebuild the Front Floor Console Rear Air Outlet. Refer to FRONT FLOOR CONSOLE REAR AIR OUTLET REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

Courtesy of VINFAST, LLC

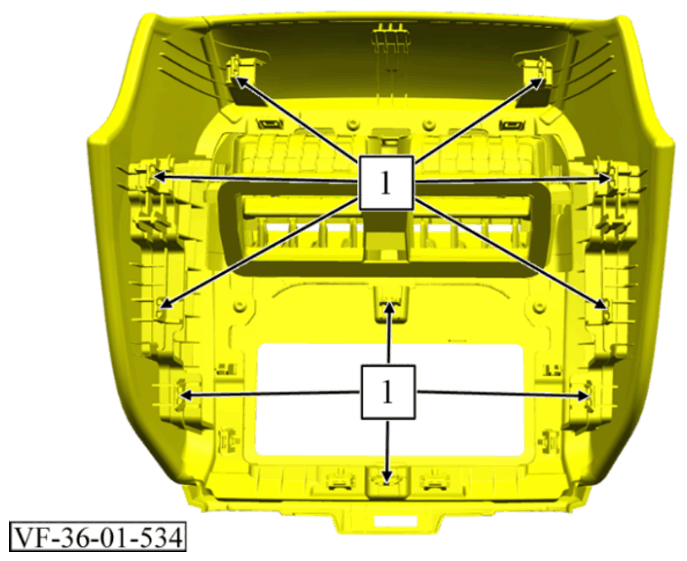

Installation note: Check latches for damage, replace cover if necessary.

Installation note: Check clamps for damage, replace if necessary.

Courtesy of VINFAST, LLC

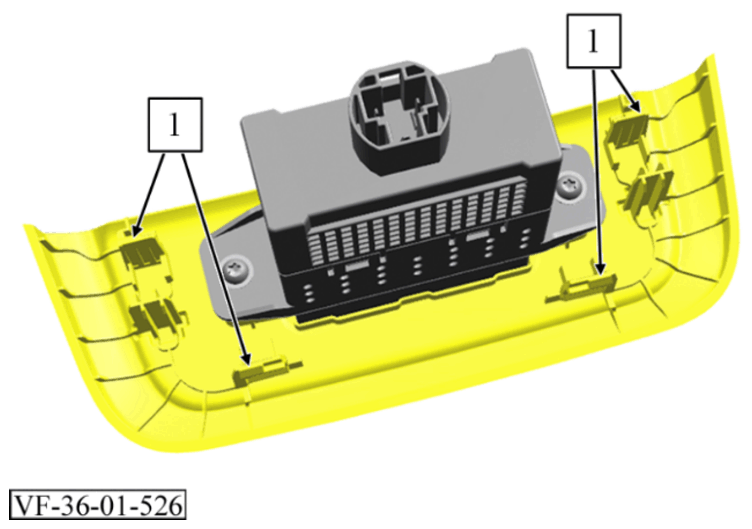

Installation note: Check latches (1) for damage, replace cover if necessary.

Installation note: Check clamps (1) for damage, replace if necessary.

1. Installation is the reverse of removal procedure, noting the following.
2. Install Multimedia Display Rear. Refer to MULTIMEDIA DISPLAY REAR REMOVAL AND INSTALLATION/REPLACEMENT
