Front Floor Console Rear Lower Cover Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

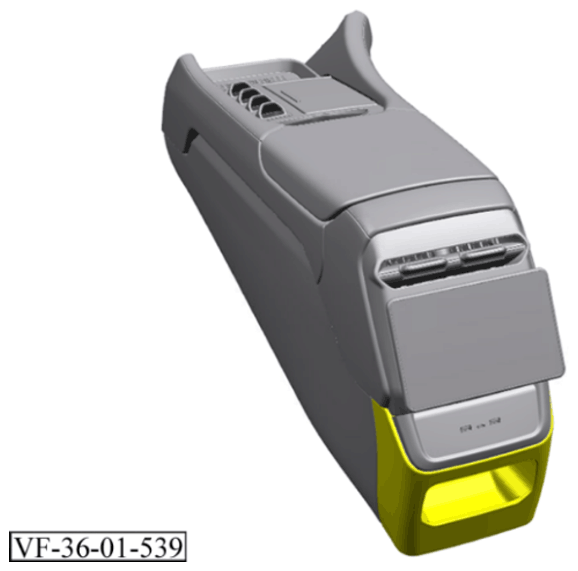

Fig 1: Front Floor Console Rear Lower Cover Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Remove Front Floor Console Rear. Refer to FRONT FLOOR CONSOLE REAR UPPER COVER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

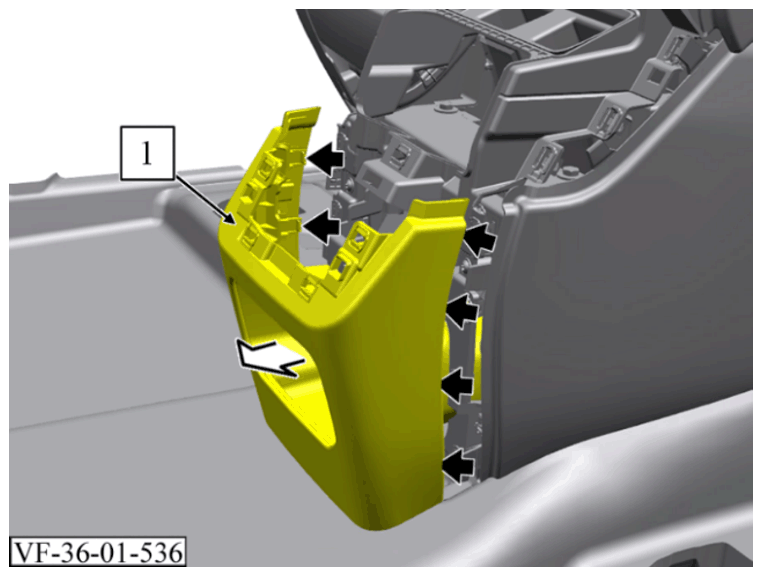

2. Carefully pry out the front floor console rear lower cover (1) at the marked points (black arrows) using a flat plastic trim tool and pull rearwards.

Installation Procedure:

Courtesy of VINFAST, LLC

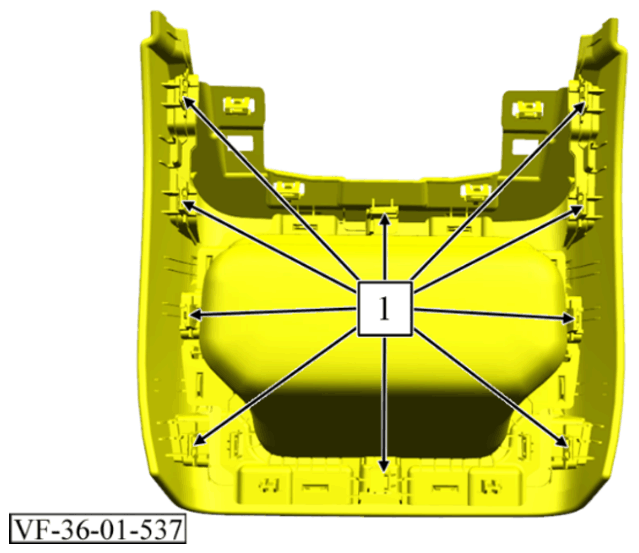

Installation note: Check latches (1) for damage, replace cover if necessary.

Installation note: Check clamps (1) for damage, replace if necessary.

1. Installation is the reverse of removal procedure, noting the following.
2. Install Front Floor Console Rear. Refer to FRONT FLOOR CONSOLE REAR UPPER COVER REMOVAL AND INSTALLATION/REPLACEMENT
