Front Floor Console Cup Holder Bezel Trim Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front floor console side upper trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

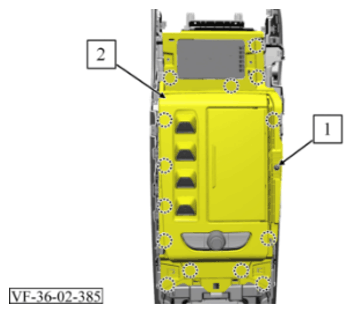

2. Remove screw (1).

   Torque: 3 Nm

3. Unclip front floor console cup holder bezel trim (2) at the marked points with a suitable plastic wedge.

   Courtesy of VINFAST, LLC

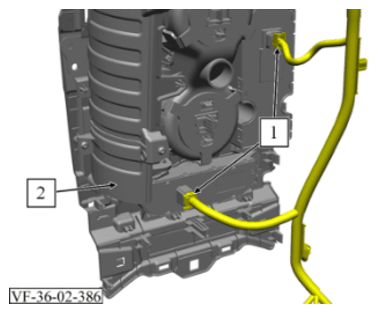

4. Unlock and disconnect 2 electrical connectors (1).
5. Remove front floor console cup holder bezel trim (2).

Replacement Procedure:

1. Rebuild electronic shifter. Refer to ELECTRONIC SHIFTER REMOVAL AND INSTALLATION/REPLACEMENT
2. Rebuild center console switch. Refer to CENTER CONSOLE SWITCH REMOVAL AND INSTALLATION/REPLACEMENT
3. Rebuild wireless charger front. Refer to WIRELESS CHARGER FRONT REMOVAL AND INSTALLATION/REPLACEMENT
4. Rebuild front floor console cup holder assy  . Refer to FRONT FLOOR CONSOLE CUP HOLDER ASSY REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front floor console side upper trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT
