Front Floor Console Rear Air Duct Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front floor console rear cover. Refer to FRONT FLOOR CONSOLE REAR COVER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

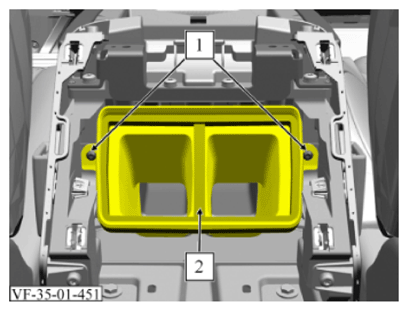

2. Remove 2 screws (1).

   Torque: 2.5 Nm

3. Remove front floor console rear air duct (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front floor console rear cover. Refer to FRONT FLOOR CONSOLE REAR COVER REMOVAL AND INSTALLATION/REPLACEMENT
