Front Floor Console Rear Cover Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Move the front seat all the way forward.

   Courtesy of VINFAST, LLC

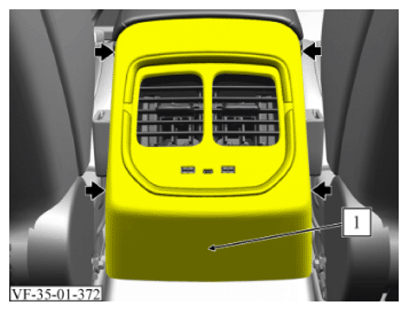

2. Carefully pry out the rear cover at the marked points (arrows) using a flat plastic trim tool and pull rearwards.

   Courtesy of VINFAST, LLC

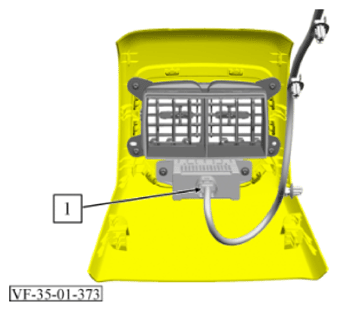

3. Unlock and disconnect the electrical connector (1).
4. Remove the front floor console rear cover.

Replacement Procedure:

1. Rebuild the rear triple USB socket. Refer to REAR TRIPLE USB SOCKET REMOVAL AND INSTALLATION/REPLACEMENT
2. Rebuild the front floor console rear air outlet. Refer to FRONT FLOOR CONSOLE REAR AIR OUTLET REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

Courtesy of VINFAST, LLC

1. Installation is the reverse of removal procedure, noting the following.

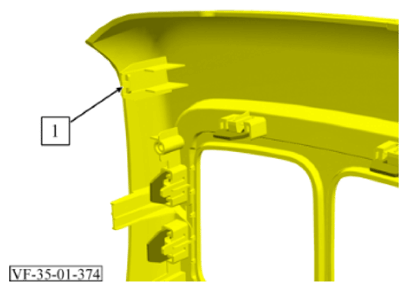

2. Check the release latches (1) of the cover for damage before installation.
