Air Inlet Grille Panel And Extension Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove both windshield wiper arms. Refer to WINDSHIELD WIPER ARM REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

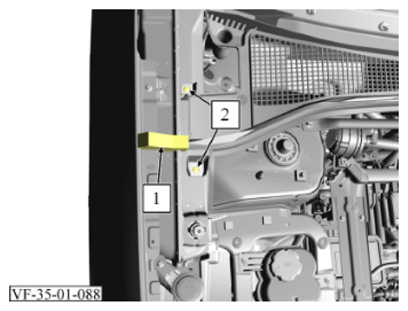

3. Remove cover (1).
4. Remove 2 clips (2).

   Courtesy of VINFAST, LLC

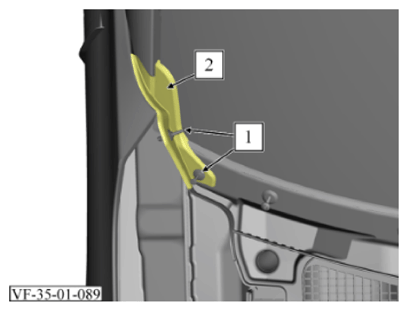

5. Remove the 2 rivets (1).
6. Remove the extension cover (2).

   Courtesy of VINFAST, LLC

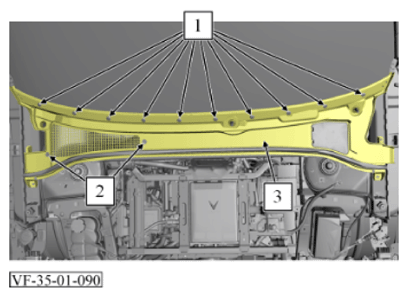

7. Remove 10 rivets (1).
8. Remove 2 screws (2).

   Torque: 3 Nm

9. Remove the air inlet grille panel (3).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
3. Install both windshield wiper arms. Refer to WINDSHIELD WIPER ARM REMOVAL AND INSTALLATION/REPLACEMENT
