Windshield Wiper Arm Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Open hood.

   Courtesy of VINFAST, LLC

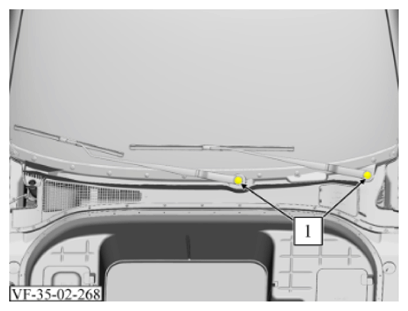

2. Remove 2 Cover Caps (1).

   Courtesy of VINFAST, LLC

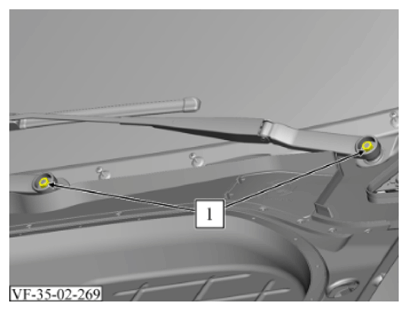

3. Remove 2 Nuts (1).

   Torque: 22 Nm

   Courtesy of VINFAST, LLC

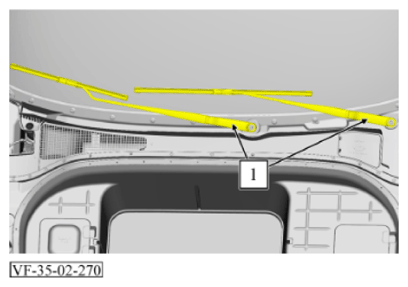

4. Pull off and remove the windscreen wiper arm (1). Do not bend the windscreen wipers when removing them.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
