Front Floor Console Cup Holder Bezel Trim Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front floor console side upper trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

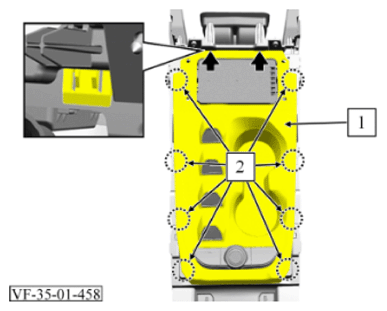

2. Unlock the front floor console cup holder bezel trim (1) with a suitable plastic wedge from the front end (arrows) and then unclip the front floor console cup holder bezel trim (1) upwards from the mountings (2).

   Courtesy of VINFAST, LLC

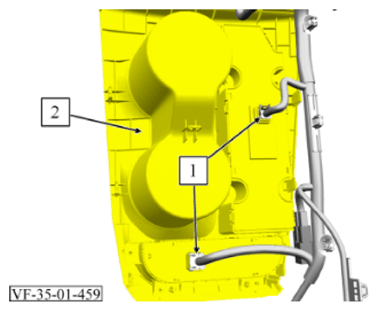

3. Unlock and disconnect 2 electrical connectors (1).
4. Remove front floor console cup holder bezel trim (2).

Replacement Procedure:

1. Rebuild electronic shifter. Refer to ELECTRONIC SHIFTER REMOVAL AND INSTALLATION/REPLACEMENT
2. Rebuild center console switch. Refer to CENTER CONSOLE SWITCH REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front floor console side upper trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT
