Disassembly [03/2019 - ]: Procedure

  1. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (for Console Box Front Side)

    Refer to PROCEDURE - Step 2 [07/2020 - ]

  2. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (for Console Box Rear Side)

    Refer to PROCEDURE - Step 2 [07/2020 - ]

  3. REMOVE WIRING HARNESS

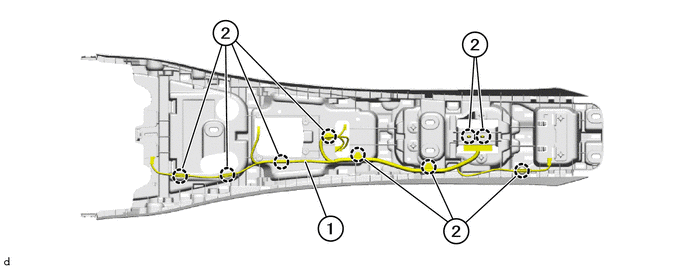

    1. Detach the clamps (2) to remove the wiring harness (1).
      GTY920116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
