Removal [07/2020 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

    1. Disconnect the connector (1).

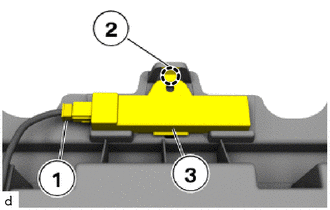

      GTY903013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw (2) to remove the No. 1 indoor electrical key antenna assembly (3).
      NOTE:

      Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
