Removal [06/2020 - 12/2021]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]
DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 4
REMOVE FRONT WHEEL
Refer to REMOVAL [06/2020 - ]

REMOVE FRONT DISC BRAKE PAD

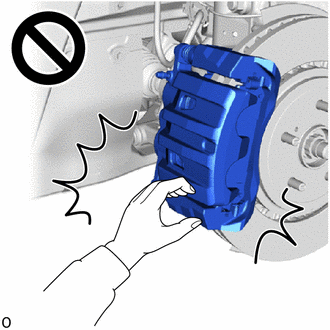

WARNING:

Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.

After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

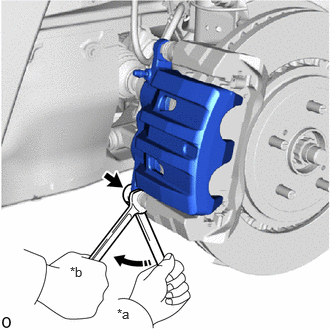

Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

NOTE:

Do not kink or damage the brake line.

Remove the 2 anti-squeal springs.

REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.

Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.
