Removal [06/2020 - 12/2021]: Procedure

Refer to PRECAUTION [06/2020 - ]

Refer to REMOVAL [06/2020 - ]

Refer to UTILITY [06/2020 - ]

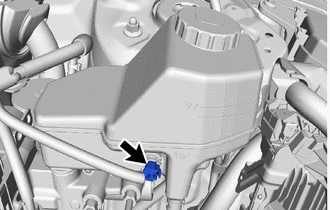

1. Wait at least 4 minutes after turning the power switch off and disconnect the reservoir level switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When the brake pedal is depressed or the door courtesy switch is turned on even if the power switch is off, the brake control system activates. Therefore do not depress the brake pedal or open/close the doors until the reservoir level switch connector is disconnected.
   • Do not operate the electric parking brake switch assembly when the electric parking brake system is in rear brake pad replacement mode.
2. Disconnect the cable from the negative (-) auxiliary battery terminal.

   Refer to REMOVAL [06/2020 - 12/2021]

3. Depress the brake pedal 40 times or more to return all the fluid in the accumulator back to the reservoir.
4. Check that the brake pedal cannot be further depressed.

1. Remove the union bolt and gasket, and disconnect the rear flexible hose LH from the rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 4

Refer to REMOVAL [06/2020 - ]

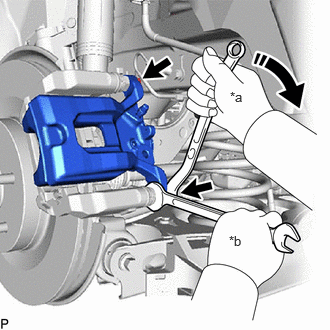

1. Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

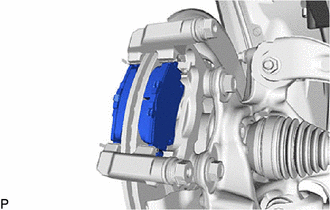

1. Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 8

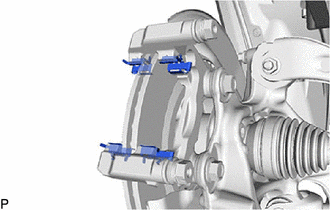

1. Remove the 4 rear disc brake pad support plates from the rear disc brake cylinder mounting.
   NOTE:

   Each rear disc brake pad support plate has a different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that it can be reinstalled to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin from the rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear No. 1 Disc Brake Cylinder Slide Pin
   *2	Rear No. 2 Disc Brake Cylinder Slide Pin

2. Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear No. 2 disc brake cylinder slide pin.
   NOTE:

   Do not damage the rear No. 2 disc brake cylinder slide pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

1. Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

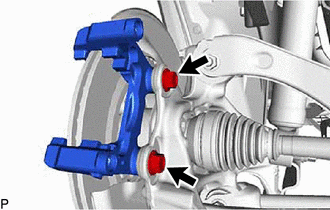

1. Remove the 2 bolts and rear disc brake cylinder mounting from the rear axle carrier sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

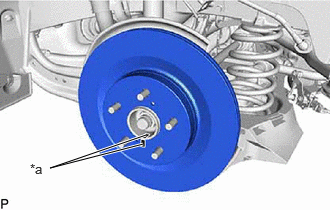

1. Put matchmarks on the rear disc and rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the rear disc from the rear axle hub and bearing assembly.
