Removal [06/2020 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR LOWER SEATBACK LOCK BEZEL LH

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR UPPER SEATBACK LOCK BEZEL LH

    Refer to PROCEDURE - Step 6

  9. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  10. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 8

  11. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH

    Refer to PROCEDURE - Step 9

  12. REMOVE REAR SEATBACK HEATER ASSEMBLY LH

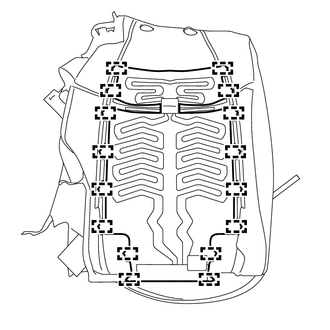

    1. Detach the clamp.
      GTY1010440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slit
    2. Pass the wire harness of rear seatback heater assembly LH through the slit of separate type rear seatback cover LH.
    3. Remove the 16 tack pins and rear seatback heater assembly LH from the separate type rear seatback cover LH.
      NOTE:

      Be careful not to damage the separate type rear seatback cover and rear seatback heater assembly.

      GTY1011494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 13

  14. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 14

  15. REMOVE SEAT BELT ANCHOR COVER CAP

    Refer to PROCEDURE - Step 15

  16. REMOVE REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 16

  17. REMOVE REAR LOWER SEATBACK LOCK BEZEL RH

    Refer to PROCEDURE - Step 17

  18. REMOVE REAR UPPER SEATBACK LOCK BEZEL RH

    Refer to PROCEDURE - Step 18

  19. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 19

  20. REMOVE CENTER ARMREST HINGE COVER

    Refer to PROCEDURE - Step 20

  21. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 21

  22. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 22

  23. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

    Refer to PROCEDURE - Step 23

  24. REMOVE REAR SEATBACK HEATER ASSEMBLY RH

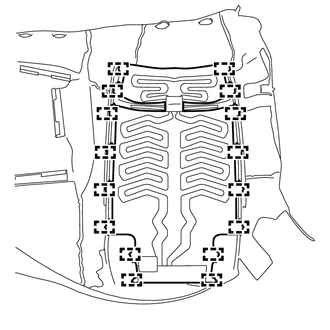

    1. Detach the clamp.
      GTY1011083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slit
    2. Pass the wire harness of rear seatback heater assembly RH through the slit of separate type rear seatback cover RH.
    3. Remove the 16 tack pins and rear seatback heater assembly RH from the separate type rear seatback cover RH.
      NOTE:

      Be careful not to damage the separate type rear seatback cover and rear seatback heater assembly.

      GTY1010580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
