Removal [06/2020 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    1. Place your hand in the position beside the hook as shown in the illustration and lift the front end of bench type rear seat cushion assembly in the removal direction to detach the cushion wire on the front of bench type rear seat cushion assembly from the rear seat cushion lock hook.
      GTY911544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

      Dimensions

      Area Measurement Area Measurement
      A 30 mm (1.18 in.) B 60 mm (2.36 in.)
      C 80 mm (3.15 in.) D 160 mm (6.30 in.)
      NOTE:
      • Be sure to detach the hook on the front of bench type rear seat cushion assembly one at a time.
      • If the hook on the front of bench type rear seat cushion assembly is detached, replace the rear seat cushion lock hook with a new one.
      • Be sure to hold the parts of the bench type rear seat cushion assembly directly next to the bench type rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.
    2. Place your hand in the position shown in the illustration and pull in the removal direction to detach the hook on the rear end of bench type rear seat cushion assembly.
      GTY1010823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    3. w/ Seat Heater System:
      GTY1010571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 4 connectors.
      2. Detach the clamp.
    4. Remove the bench type rear seat cushion assembly.
      NOTE:

      Be careful not to damage the bench type rear seat cushion assembly, body exterior or interior parts.

  2. REMOVE REAR SEAT CUSHION LOCK HOOK
    NOTE:
    • If the hook on the front of the bench type rear seat cushion assembly is detached, replace the rear seat cushion lock hook with a new one.
    • Do not reuse the removed rear seat cushion lock hook.

    HINT:

    Use the same procedure for the 2 parts.

    1. Insert 2 thin-bladed screwdrivers between the rear seat cushion lock hook sleeve and body as shown in the illustration.
      GTY919452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Body
      *b Sleeve
    2. Pull up the 2 thin-bladed screwdrivers to detach the claw and remove the rear seat cushion lock hook.
  3. REMOVE REAR SEATBACK ASSEMBLY LH

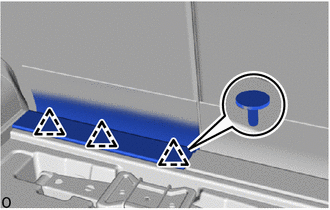

    1. Detach the clip.
      GTY984834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
      GTY878596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clamp.
    3. Fold the rear seatback assembly LH forward.
      GTY878599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When folding down the rear seatback assembly LH make sure that the rear seatback assembly LH does not contact the body.

    4. Remove the 2 bolts.
    5. Detach the guide and remove the rear seatback assembly LH.
      GTY878598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the rear seatback assembly LH, body exterior or interior parts.

  4. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR SEATBACK ASSEMBLY RH
    1. Detach the clip.
      GTY984832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fold the rear seatback assembly RH forward.
      GTY935068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When folding down the rear seatback assembly RH make sure that the rear seatback assembly RH does not contact the body.

    3. Remove the 2 bolts.
    4. Detach the guide and remove the rear seatback assembly RH.
      GTY878601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the rear seatback assembly RH, body exterior or interior parts.

  6. REMOVE REAR CENTER SEATBACK HINGE SUB-ASSEMBLY

    HINT:

    Perform this procedure when replacing the rear center seatback hinge sub-assembly.

    1. Remove the 2 bolts and rear center seatback hinge sub-assembly.
      GTY935069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

    HINT:

    Perform this procedure when replacing the rear seatback hinge sub-assembly LH.

    1. Remove the 2 bolts and rear seatback hinge sub-assembly LH.
      GTY878600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

    HINT:

    • Perform this procedure when replacing the rear seatback hinge sub-assembly RH.
    • Use the same procedure described for the LH side.
  9. REMOVE REAR DOOR SCUFF PLATE LH

    HINT:

    Perform this procedure when replacing the rear door scuff plate LH.

    Refer to PROCEDURE - Step 7 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 7 [12/2021 - ]

  10. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    HINT:

    Perform this procedure when replacing the No. 3 battery service cover board.

    Refer to PROCEDURE - Step 9 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 9 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  11. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    • Perform this procedure when replacing the rear door scuff plate RH.
    • Use the same procedure described for the LH side.
  12. REMOVE NO. 2 BATTERY SERVICE COVER BOARD

    HINT:

    Perform this procedure when replacing the No. 2 battery service cover board.

    Refer to PROCEDURE - Step 11 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 11 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - ]

  13. REMOVE BATTERY SERVICE COVER BOARD

    HINT:

    Perform this procedure when replacing the battery service cover board.

    Refer to PROCEDURE - Step 12 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 12 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]

  14. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    HINT:

    Perform this procedure when replacing the rear seat cushion leg sub-assembly.

    1. Remove the 7 bolts.
      GTY997576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the guide and remove the rear seat cushion leg sub-assembly.
