Disassembly [06/2020 - 12/2021]: Procedure

  1. REMOVE FOG LIGHT SEAL (w/o Intuitive Parking Assist System)

    HINT:

    Use the same procedure for both fog light seals.

    1. Remove the fog light seal.
      GTY900425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT ULTRASONIC SENSOR CLIP (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 6

  7. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 3

  9. REMOVE DAYTIME RUNNING LIGHT ASSEMBLY LH (w/ Daytime Running Light)

    Refer to PROCEDURE - Step 2

  10. REMOVE DAYTIME RUNNING LIGHT ASSEMBLY RH (w/ Daytime Running Light)

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE NO. 4 ENGINE ROOM WIRE

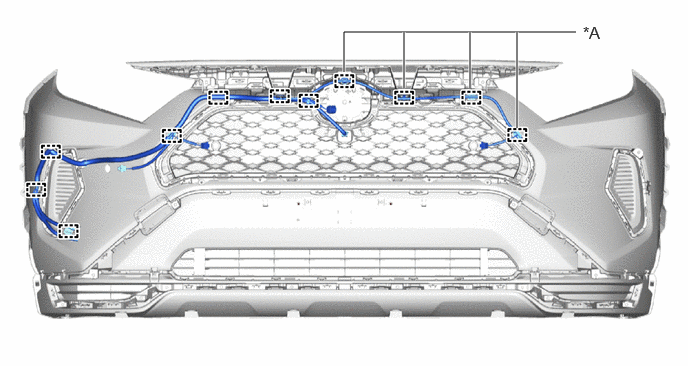

    1. w/o Daytime Running Light:
      1. Detach the clamp and remove the No. 4 engine room wire.
        GTY1014425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Intuitive Parking Assist System - -
    2. w/ Daytime Running Light:
      1. Detach the clamp and remove the No. 4 engine room wire.
        GTY1007079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NUT
    1. Remove the 2 nuts.
      GTY923207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 screws and front bumper extension mounting bracket.
      GTY1007081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT HOOD TO END PANEL SEAL
    1. Detach the clip and remove the front hood to end panel seal as shown in the illustration.
      GTY1009566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  15. REMOVE RADIATOR GRILLE BRACKET
    1. Remove the 2 screws.
      GTY907958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip (A)
      Clip (B)
    2. Remove the 4 clips (A).
    3. Remove the 2 clips (B) and detach the guide.
    4. Remove the 8 screws.
      GTY1009134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Detach the claw and guide to remove the radiator grille bracket as shown in the illustration.

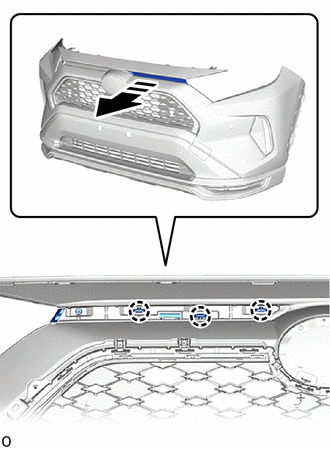

  16. REMOVE SIDE RADIATOR GRILLE MOULDING LH
    1. Detach the claw and remove the side radiator grille moulding LH as shown in the illustration.
      GTY1010101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. REMOVE SIDE RADIATOR GRILLE MOULDING RH

    HINT:

    Use the same procedure described for the LH side.

  18. REMOVE FRONT BUMPER HOLE COVER LH
    1. w/o Daytime Running Light:
      GTY1006066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      1. Remove the clip.
      2. Detach the claw and remove the front bumper hole cover LH as shown in the illustration..
    2. w/ Daytime Running Light:
      GTY1009055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      1. Remove the clip.
      2. Detach the claw and remove the front bumper hole cover LH as shown in the illustration..
  19. REMOVE FRONT BUMPER HOLE COVER RH

    HINT:

    Use the same procedure described for the LH side.

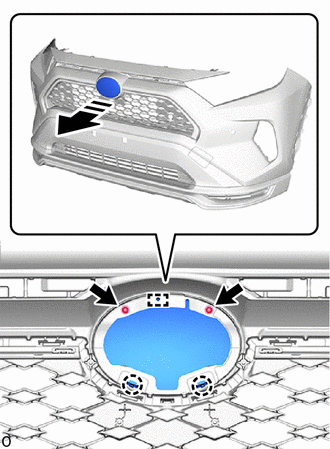

  20. REMOVE RADIATOR GRILLE EMBLEM
    1. Remove the 2 screws.
      GTY1009247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the claw and guide to remove the radiator grille emblem as shown in the illustration.
  21. REMOVE FRONT BUMPER ARM HOLE COVER LH
    1. Detach the claw as shown in the illustration.
      GTY1010022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

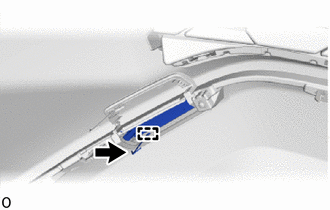

    2. Detach the fall prevention hook from guide and remove the front bumper arm hole cover LH.
      GTY1006407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fall Prevention Hook
  22. REMOVE FRONT BUMPER ARM HOLE COVER RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE FRONT BUMPER GUARD COVER LH
    1. Detach the claw as shown in the illustration.
      GTY1009736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the fall prevention hook from guide and remove the front bumper guard cover LH.
      GTY1006437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fall Prevention Hook
  24. REMOVE FRONT BUMPER GUARD COVER RH

    HINT:

    Use the same procedure described for the LH side.

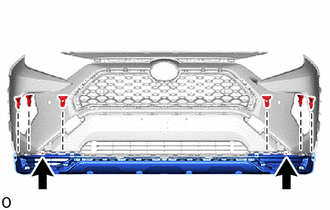

  25. REMOVE FRONT BUMPER GUARD
    1. Remove the 6 outside moulding retainers.
      GTY1009775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Detach the claw and guide to remove the front bumper guard as shown in the illustration.
      GTY1009353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

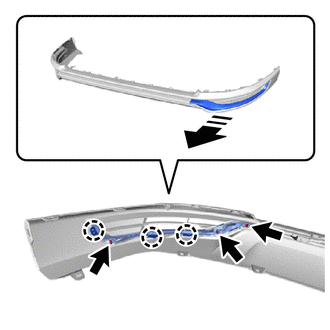

  26. REMOVE FRONT BUMPER SIDE MOULDING LH
    1. Remove the 3 screws.
      GTY1009532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the claw and remove the front bumper side moulding LH as shown in the illustration.
  27. REMOVE FRONT BUMPER SIDE MOULDING RH

    HINT:

    Use the same procedure described for the LH side.

  28. REMOVE FRONT BUMPER MOULDING
    1. Remove the 4 screws.
      GTY1009675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. Detach the claw and guide to remove the front bumper moulding as shown in the illustration.
  29. REMOVE LOWER NO. 2 RADIATOR GRILLE
    1. Remove the 2 screws.
      GTY1009024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the lower No. 2 radiator grille as shown in the illustration.
      GTY1010259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  30. REMOVE RADIATOR GRILLE PROTECTOR

    HINT:

    When removing the radiator grille protector, if the double-sided tape is difficult to remove, heat the adhesive of the radiator grille protector and lower No. 2 radiator grille using a heat light.

    Standard

    Item Temperature
    Lower No. 2 Radiator Grille 20 to 30°C (68 to 86°F)
    Radiator Grille Protector 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the radiator grille protector excessively.

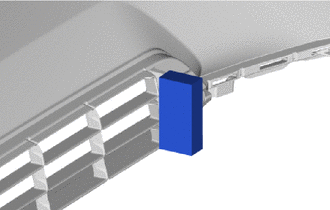

    1. Remove the radiator grille protector.
      GTY1116002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE LOWER NO. 1 RADIATOR GRILLE
    1. Detach the claw and guide to remove the lower No. 1 radiator grille as shown in the illustration.
      GTY1009842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

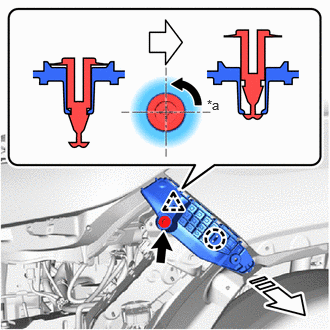

  32. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt.
      GTY1013696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°
      Rotation Direction
      Remove in this Direction
    2. Turn the clip 90° and detach the clip and claw to remove the front bumper side retainer LH as shown in the illustration.
  33. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure described for the LH side.

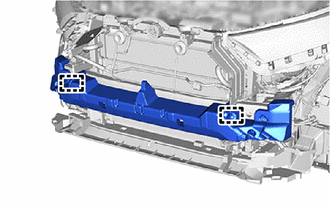

  34. REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER
    1. Detach the guide and remove the front bumper No. 2 energy absorber.
      GTY1010133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Detach the wire harness clamp.
      GTY882617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 bolts and front bumper reinforcement sub-assembly.
      GTY1009287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE FRONT BUMPER LOWER ABSORBER
    1. Remove the clip.
      GTY1008264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the front bumper lower absorber.

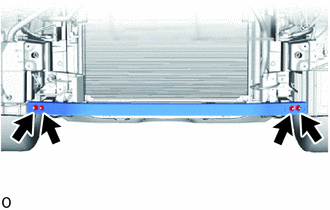

  37. REMOVE FRONT BUMPER NO. 2 REINFORCEMENT
    1. Remove the 4 nuts and front bumper No. 2 reinforcement.
      GTY937273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

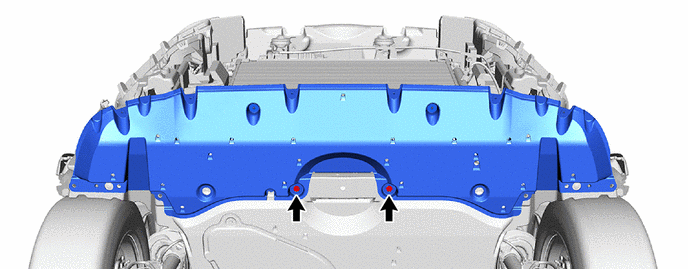

  38. REMOVE NO. 1 ENGINE UNDER COVER
    1. Remove the 2 bolts.
      GTY1013785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

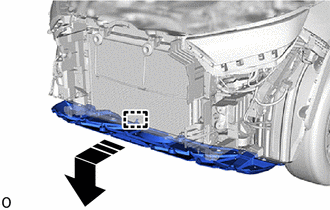

    2. Detach the guide and remove the No. 1 engine under cover as shown in the illustration.
      GTY876981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

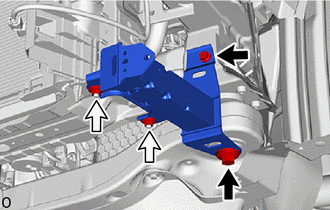

  39. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH
    1. Remove the 2 nuts and 2 bolts and front bumper extension sub-assembly LH.
      GTY907818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  40. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.
