Removal [06/2020 - 10/2022]: Procedure

  1. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 8

  2. REMOVE UPPER RADIATOR AIR GUIDE PLATE

    Refer to PROCEDURE - Step 2

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:

    Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

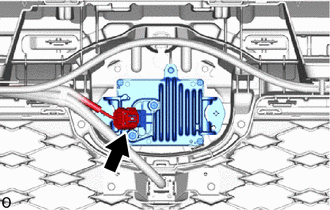

    1. Disconnect the connector.
      GTY1008080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and screw.
      GTY1007808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    3. Detach the guide and remove the millimeter wave radar sensor assembly.
