Removal [06/2020 - 12/2021]: Procedure

  1. PRECAUTION (w/ Hands Free Power Back Door)
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Hands Free Power Back Door)

    Refer to REMOVAL [06/2020 - 12/2021]

  3. REMOVE REAR BUMPER SIDE SEAL LH
    1. Remove the 3 clips.

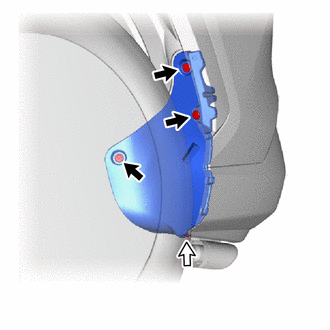

      GTY850503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip
      Screw
    2. Remove the screw and rear bumper side seal LH.
  4. REMOVE REAR BUMPER SIDE SEAL RH
    1. Remove the 4 clips.

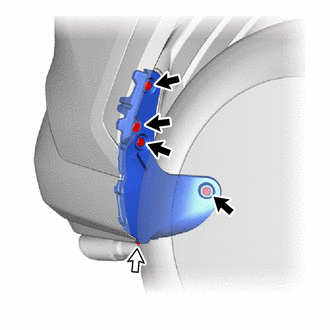

      GTY895979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip
      Screw
    2. Remove the screw and rear bumper side seal RH.
  5. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

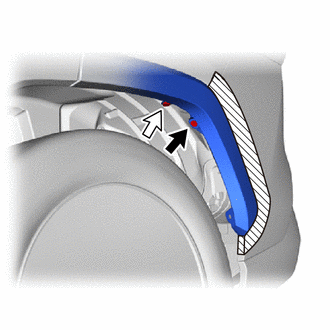

    1. GTY1005958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip

      Put protective tape around the quarter outside moulding sub-assembly LH.

    2. Remove the screw.
    3. Remove the clip.
    4. Pull back the edge of the rear wheel house liner LH and detach the claw by pushing the area indicated by the arrow in the illustration with a finger.

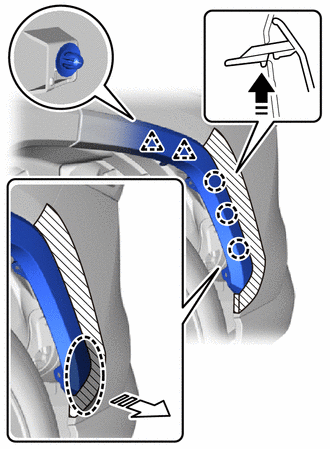

      GTY839339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand Here
      Push in this Direction
      Remove in this Direction
      NOTE:
      • Do not apply excessive force when pulling back the rear wheel house liner LH.
      • To avoid damaging the claw, do not forcibly pull the quarter outside moulding sub-assembly LH.
    5. Detach the clip and disconnect the quarter outside moulding sub-assembly LH as shown in the illustration.
    6. Remove the 2 clips from the quarter outside moulding sub-assembly LH.
      NOTE:

      If the quarter outside moulding sub-assembly LH has been disconnect, replace the clip with a new one.

  6. REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  7. REMOVE REAR COMBINATION LIGHT COVER LH

    Refer to PROCEDURE - Step 6

  8. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE REAR BUMPER UPPER STOPPER
    1. Remove the 2 rear bumper upper stoppers.

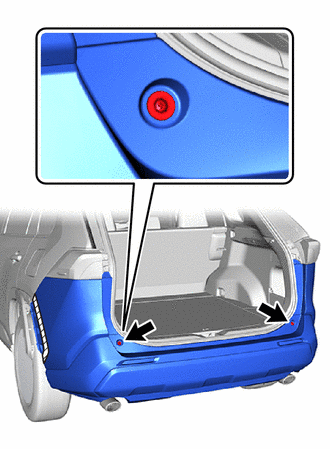

      GTY889295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR BUMPER ASSEMBLY
    1. Put protective tape around the rear bumper assembly.

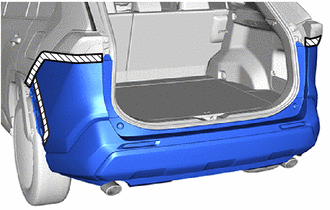

      GTY929766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 2 screws.

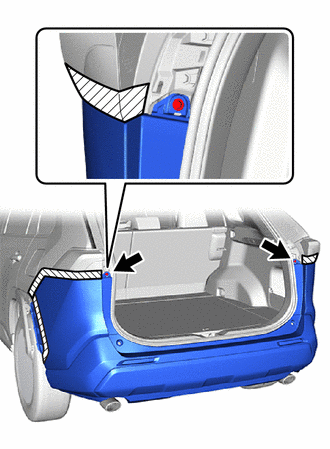

      GTY893337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

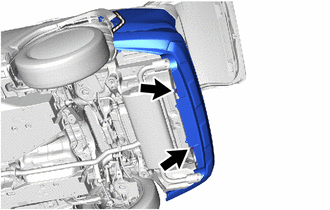

    3. Remove the 2 clips.
      GTY937435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull the rear quarter outside moulding sub-assembly LH toward the outside as shown in the illustration.

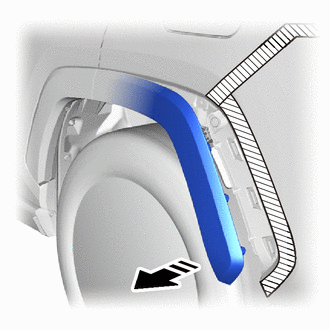

      GTY869456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the clip.

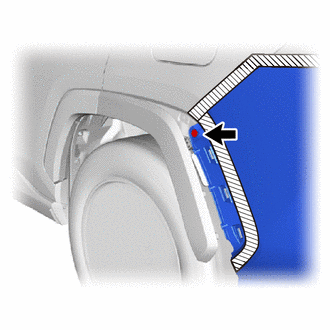

      GTY893275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

    6. Detach the claw as shown in the illustration.

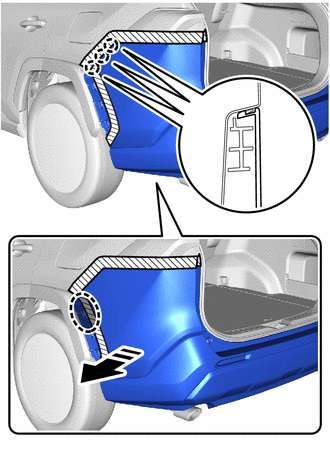

      GTY869426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the other side.

    7. Detach the claw as shown in the illustration.

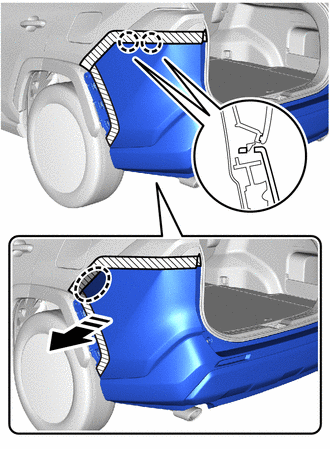

      GTY866126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the other side.

    8. w/ Wire Harness:

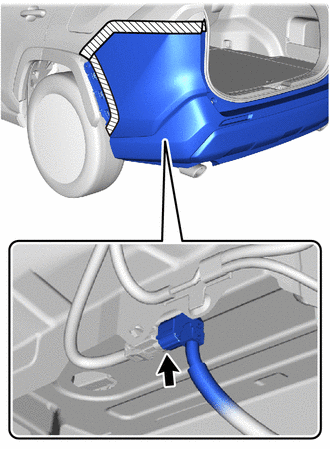

      GTY937434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Detach the claw and back door garnish retainer to remove the rear bumper assembly as shown in the illustration.

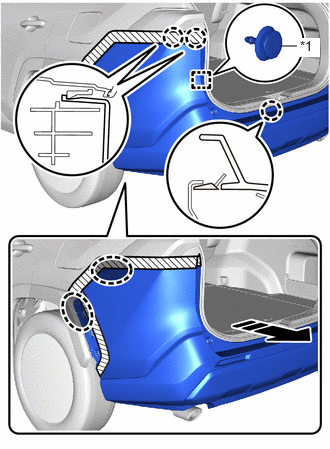

        GTY1005989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Back Door Garnish Retainer
        Place hand Here
        Remove in this Direction

        HINT:

        Use the same procedure for the other side.
