Removal [06/2020 - ]: Procedure

Refer to PROCEDURE - Step 2 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - ]

Refer to PROCEDURE - Step 3 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 3 [12/2021 - ]

Refer to PROCEDURE - Step 9 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 9 [12/2021 - ]

Refer to PROCEDURE - Step 41 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 41 [12/2021 - ]

1. Remove the rear side of the deck trim side panel assembly LH so that the connector of the rear combination light assembly LH can be disconnected.

   Refer to PROCEDURE - Step 42 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 42 [12/2021 - ]

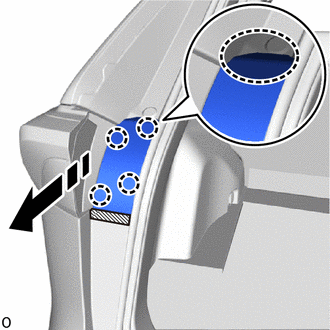

1. Apply protective tape as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Protective Tape
   	Remove in this Direction

2. Place your hand at the location shown in the illustration and detach the claw to remove the rear combination light cover LH.

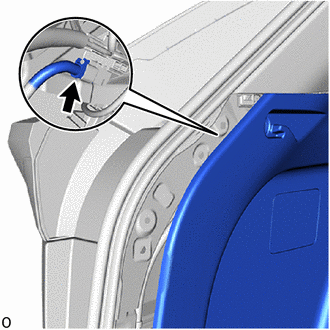

1. Insert your hand between the deck trim side panel assembly LH and the body and disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

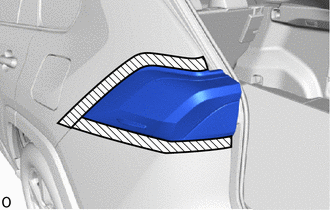

2. Apply protective tape around the rear combination light assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

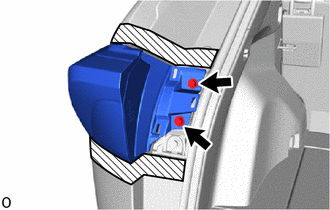

3. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

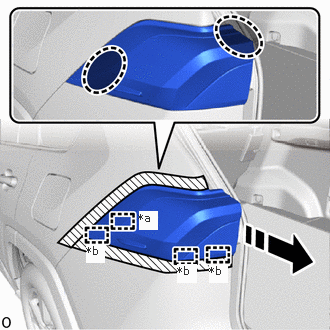

4. Place your hand at the location shown in the illustration and pull the rear combination light assembly LH toward the rear of the vehicle to detach the pin and guide to disconnect it.
   NOTE:

   Pull the rear combination light assembly LH straight towards the rear of the vehicle to prevent the guide from becoming damaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide
   	Place Hands Here
   	Pull in this Direction

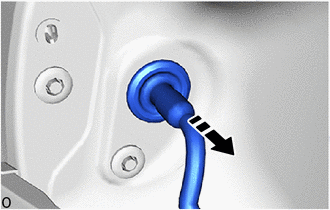

5. Remove the grommet and pull out the wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction
